Signal Waveform & Data

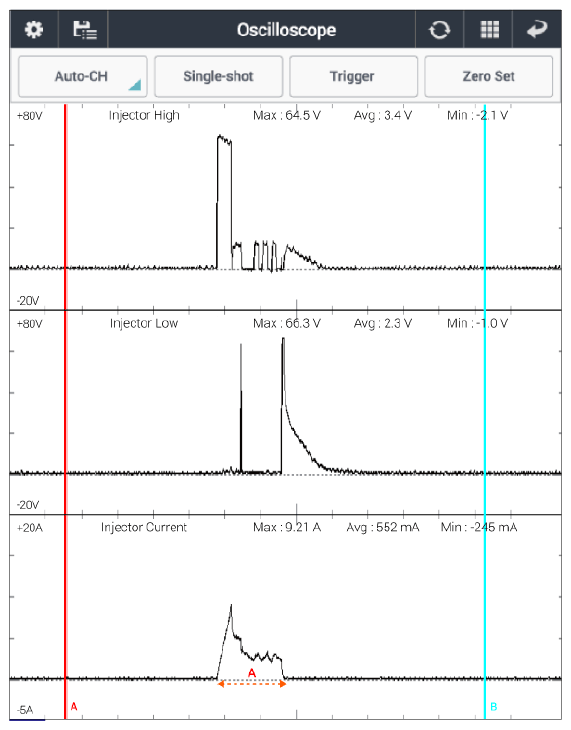

 Courtesy of KIA MOTORS AMERICA, INC.
|
A: Fuel injection time - Approx. 1450us
CH. A - Injector Max 64.5V
CH. AUX - Injector Current MAX 9.21A

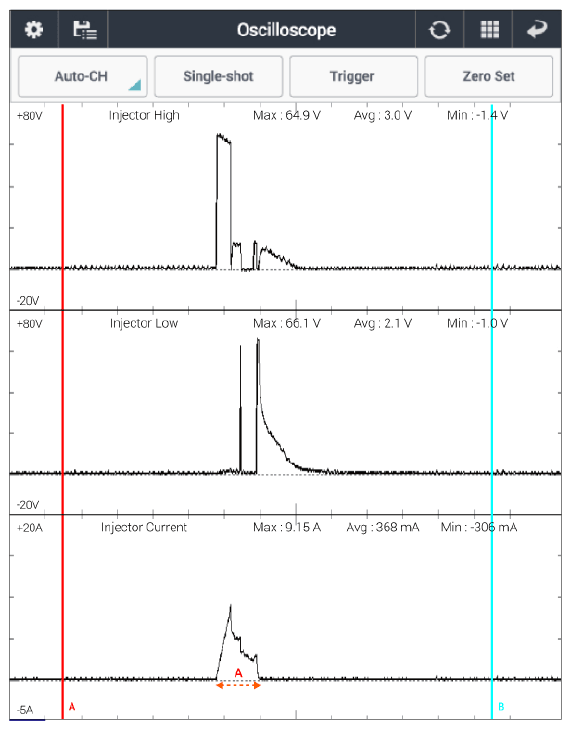

 Courtesy of KIA MOTORS AMERICA, INC.
|
A: Fuel injection time - Approx. 900us
CH. A - Injector Max 64.9V
CH. AUX - Injector Current MAX 9.15A

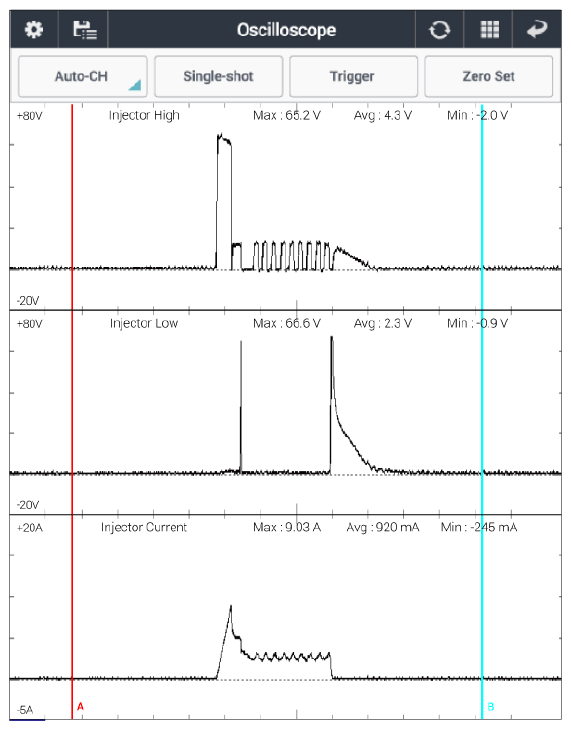

 Courtesy of KIA MOTORS AMERICA, INC.
|
CH. A - Injector Max 65.2V
CH. AUX - Injector Current MAX 9.09A
