Signal Waveform & Data

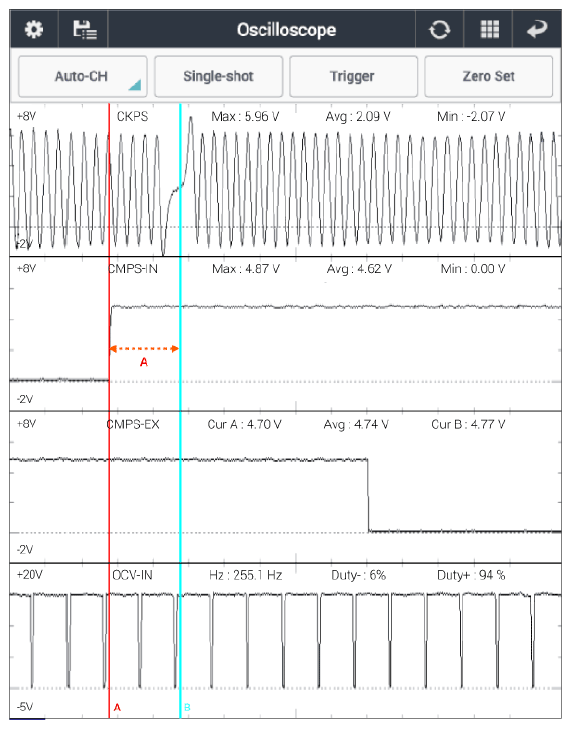

G12918947Courtesy of KIA MOTORS AMERICA, INC.

A: CKPS & CMPS (Intake side) synchronization - There are about 4-5 teeth between the CKPS missing tooth and CMPS signal.
