Signal Waveform & Data

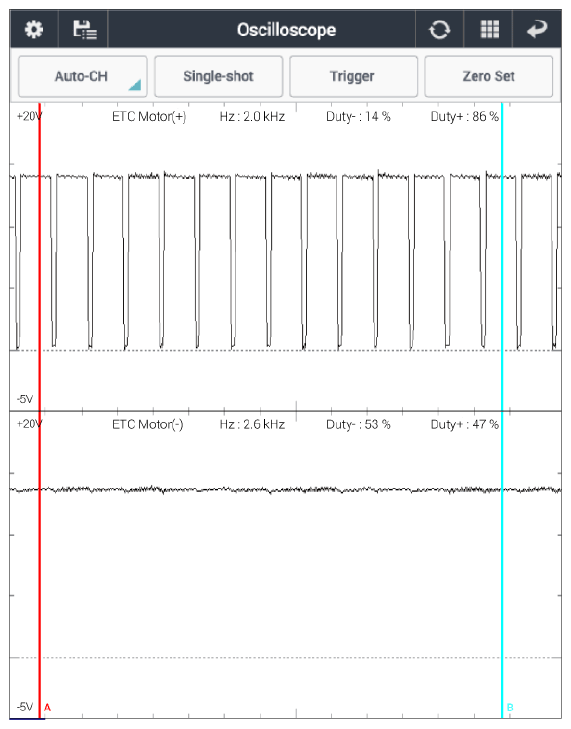

G12918931

Courtesy of KIA MOTORS AMERICA, INC.

ETC Motor (+) → Duty (+) Approx. 86%

Duty (-) Approx. 14%

ETC Motor (-) → Not in Control

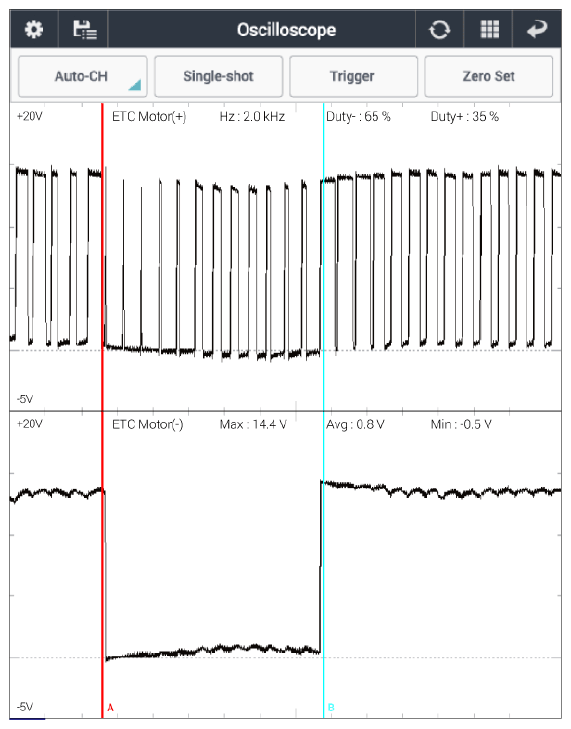

G12918932

Courtesy of KIA MOTORS AMERICA, INC.
