Signal Waveform & Data
 Courtesy of KIA MOTORS AMERICA, INC.
|

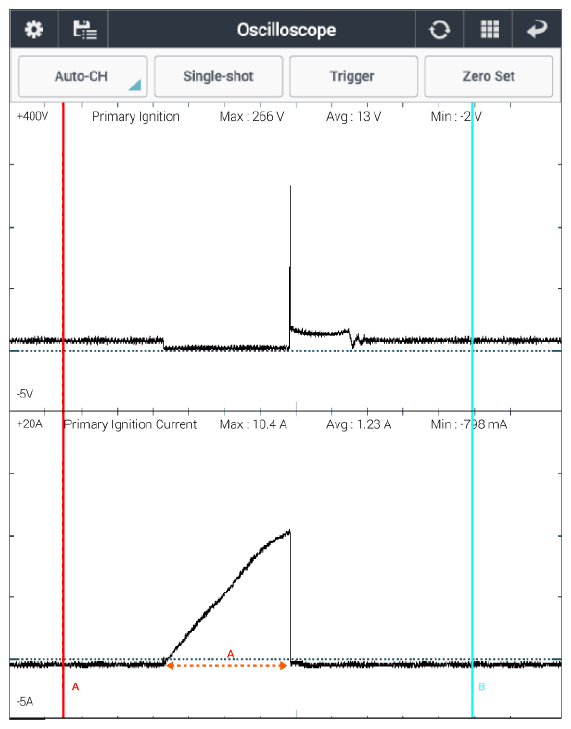

Primary Ignition control time - Approx. 750us
CH. A - Primary Ignition Max 266V
CH. AUX - Primary Ignition Current MAX 10.4A
 Courtesy of KIA MOTORS AMERICA, INC.
|

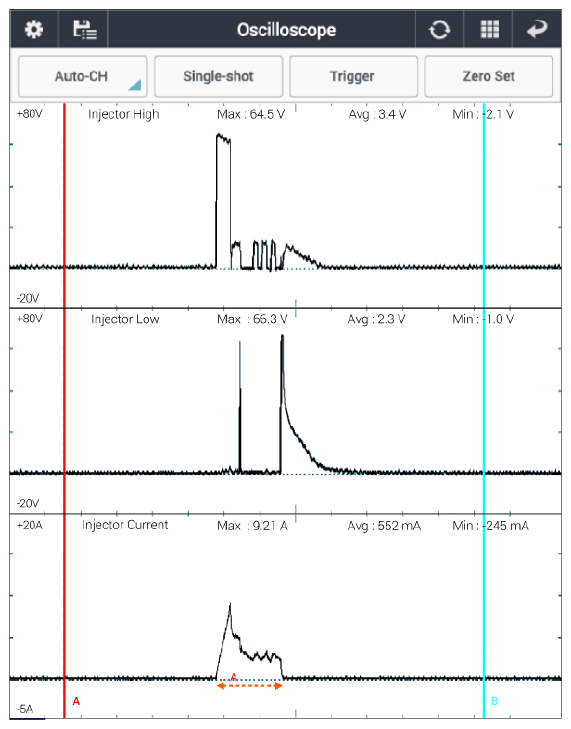

A: Fuel injection time - Approx. 1545us
CH. A - Injector Max 64.4V
CH. AUX - Injector Current MAX 9.09A
