Resetting Adaptive Values

  1. Connect KDS to DLC (Data Link Cable).
  2. Ignition "ON" & ENG "OFF"
  3. Select the "Vehicle S/W Management" about related DTC with KDS.

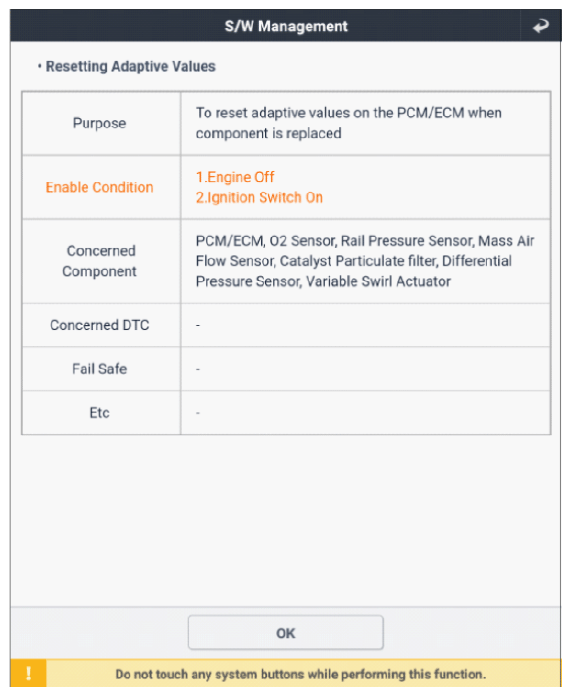

    G12918511Courtesy of KIA MOTORS AMERICA, INC.

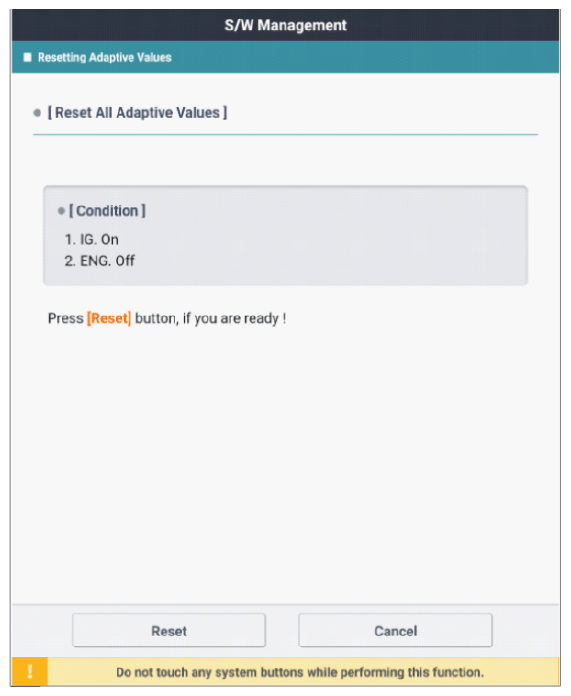

    G12918512Courtesy of KIA MOTORS AMERICA, INC.

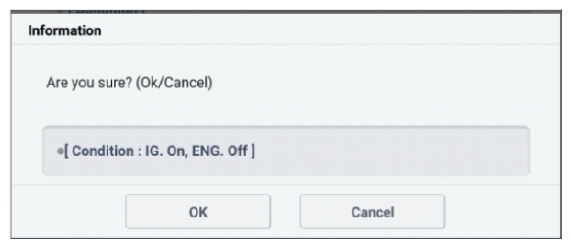

    G12918514Courtesy of KIA MOTORS AMERICA, INC.

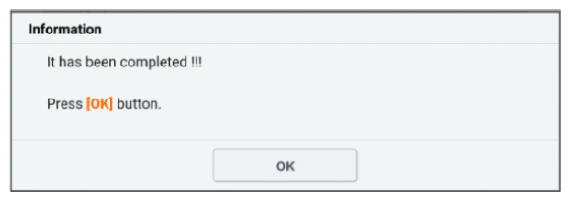

    G12918515Courtesy of KIA MOTORS AMERICA, INC.
  4. When the "Resetting Adaptive Values" has been finished perfectly, press "OK" button and go to "VERIFICATION OF REPAIR " procedure.
