Resetting Adaptive Values

  1. Connect KDS to DLC (Data Link Cable).
  2. Ignition "ON" & ENG "OFF"
  3. Select the "Vehicle S/W Management" about related DTC with KDS.

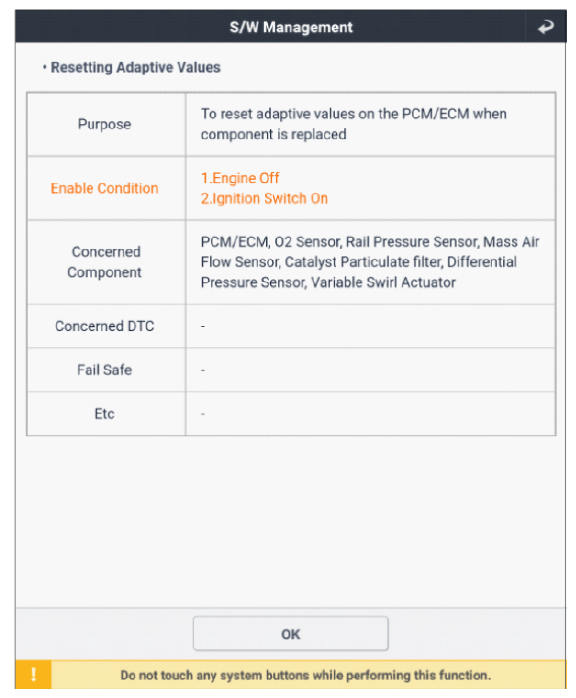

    G12918491Courtesy of KIA MOTORS AMERICA, INC.

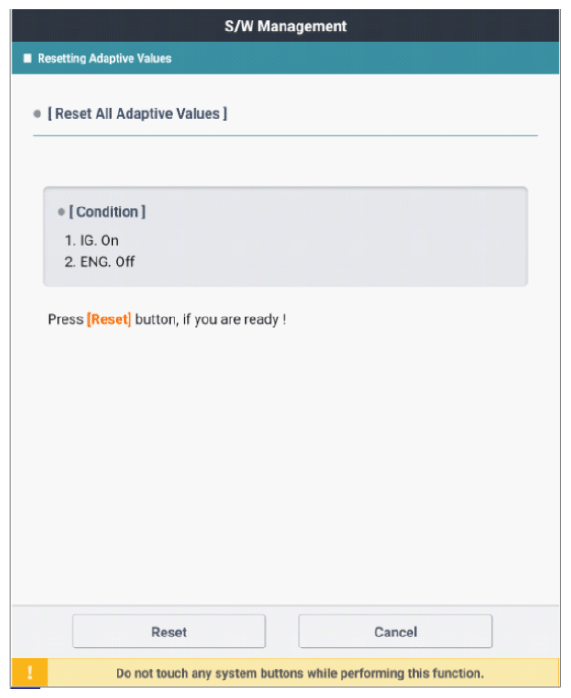

    G12918492Courtesy of KIA MOTORS AMERICA, INC.

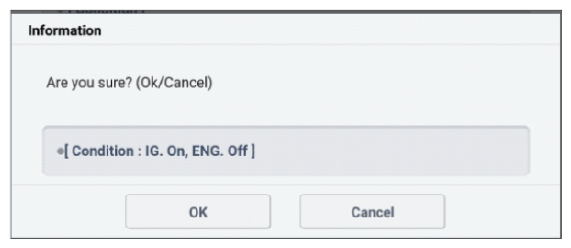

    G12918493Courtesy of KIA MOTORS AMERICA, INC.

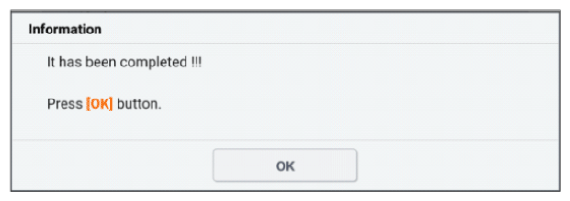

    G12918494Courtesy of KIA MOTORS AMERICA, INC.
  4. When the "Resetting Adaptive Values" has been finished perfectly, press "OK" button and go to "VERIFICATION OF REPAIR " procedure.
