Repair Procedures: Installation

  1. Install in the reverse order of removal.
  2. Tighten the HECU mounting bolts and nuts to the specified torque.
  3. After installation, bleed the brake system.

    (Refer to Brake system - "ESP Bleeding of Brake System ")

  4. Connect the KDS to the data link connector located underneath the dash panel.
  5. Select and operate according to the instructions on the KDS screen.

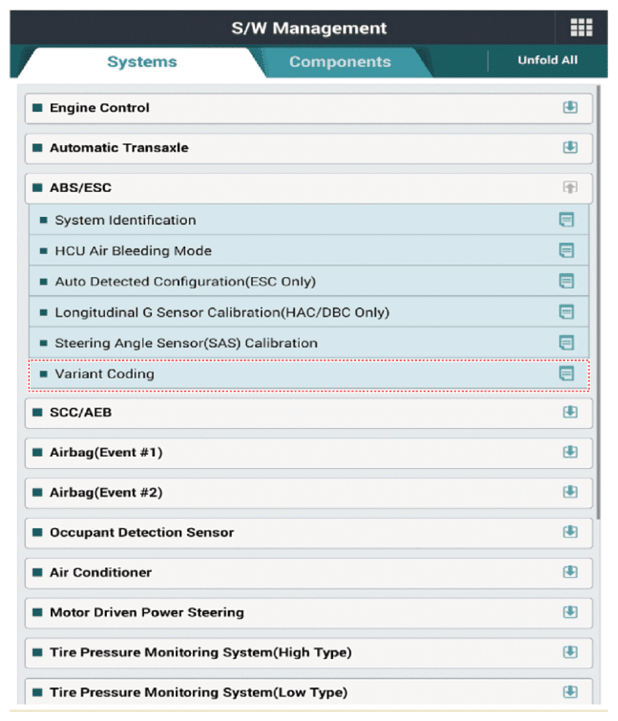

    G12917217Courtesy of KIA MOTORS AMERICA, INC.

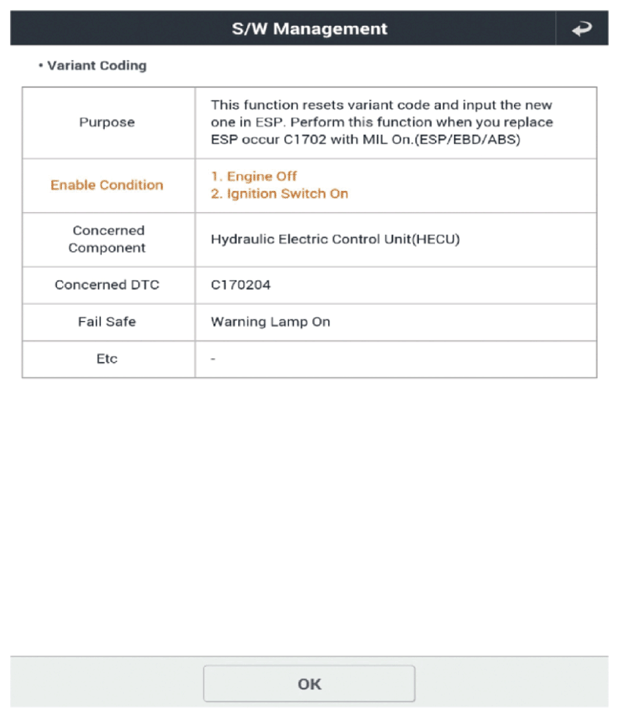

    G12917218Courtesy of KIA MOTORS AMERICA, INC.

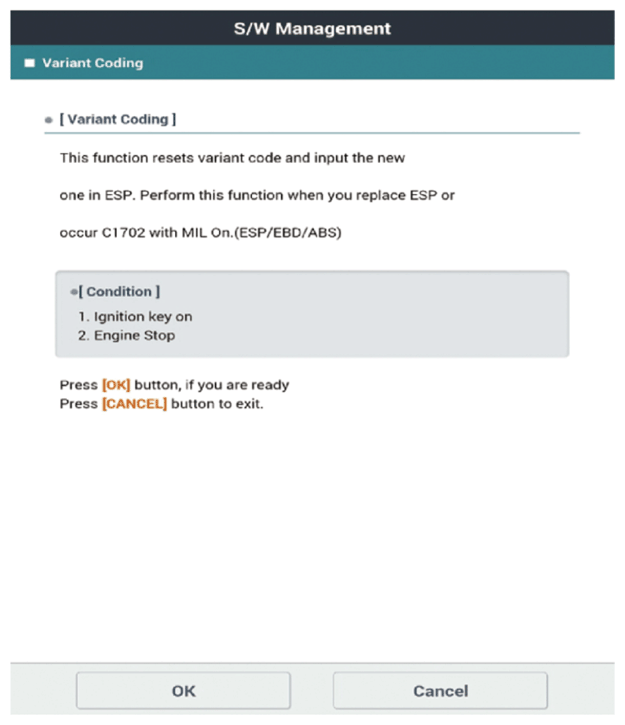

    G12917219Courtesy of KIA MOTORS AMERICA, INC.
