Variant Coding (In case HECU is replaced with new one): Notes

Ignition switch "OFF"
Connect KDS to Data Link Connector (DLC).
Ignition switch "ON"
Select "Vehicle S/W Management" on KDS.

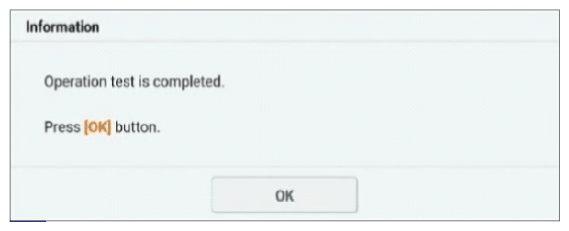

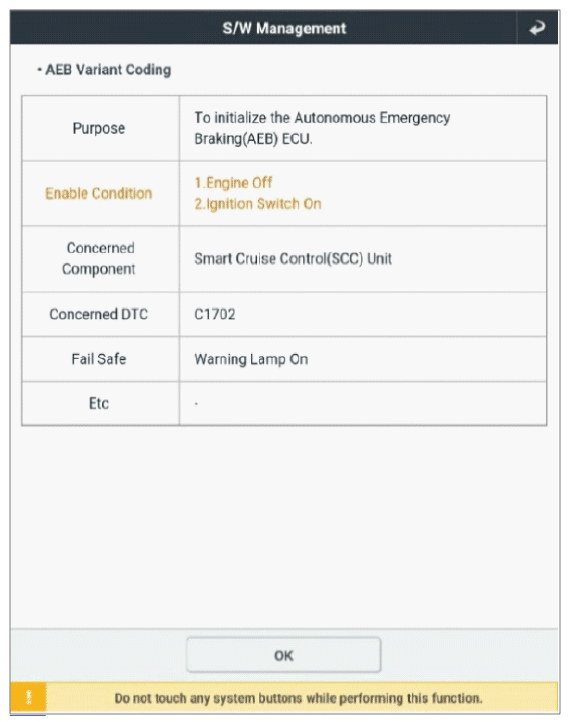

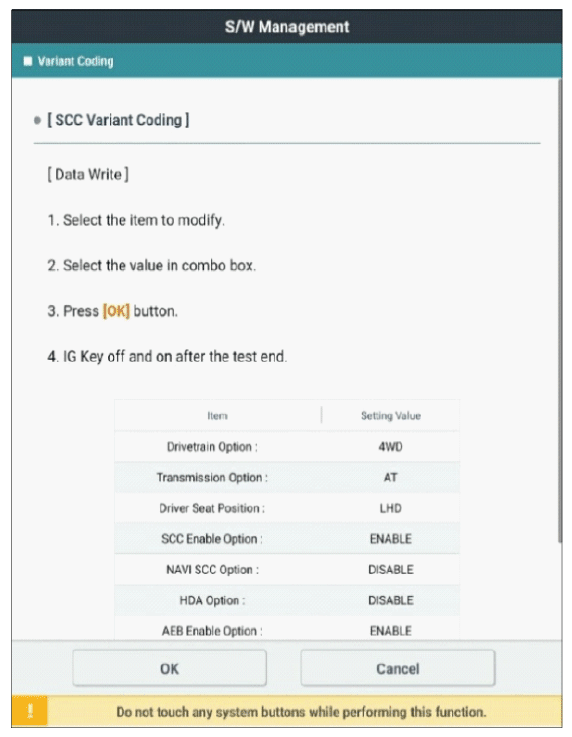

Perform "Variant Coding" in "Vehicle S/W Management" with KDS.
* Before performing the variant coding function, ESP coding code is required from GSW site.
