System Operation Spec: Notes

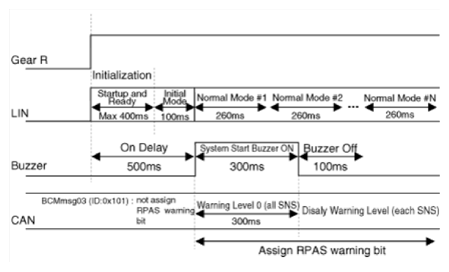

When the system has the power (after IGN ON and R gear), MICOM checks every sensor channel. In case it finds any error, it gives off the buzzer for 300ms after 500ms. If an error is found even in a sensor, it gives off the buzzer corresponding to the faulty sensor, instead of initial starting alarm. The operation to enter the normal mode is as follows.

Courtesy of KIA MOTORS AMERICA, INC.

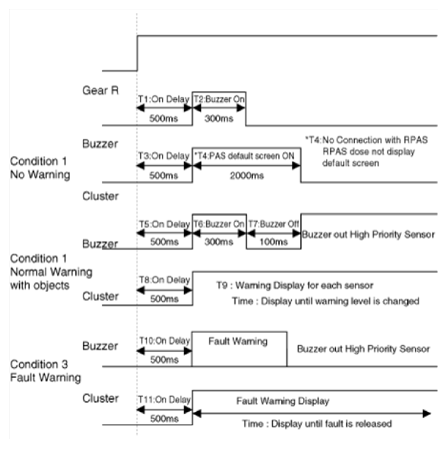

With the R gear put in the car, the system is operated as follows.

Courtesy of KIA MOTORS AMERICA, INC.

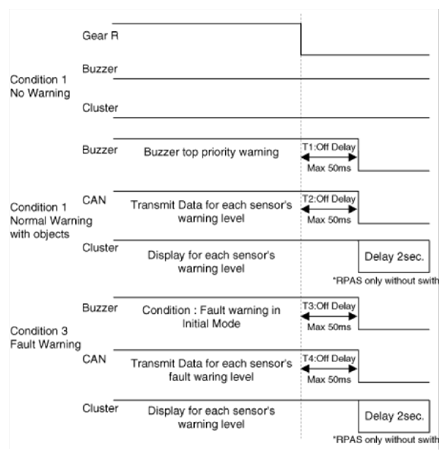

With the R gear released, the system is operated as follows.

Courtesy of KIA MOTORS AMERICA, INC.

The acceptable error range on waveform is ±10%.
