BSD Unit Alignment

  1. Rear bumper accident vehicles and vehicles that replaced BSD units must perform BSD unit alignment using KDS.
  2. Select "BSD Radar Calibration" procedure in BSD system.

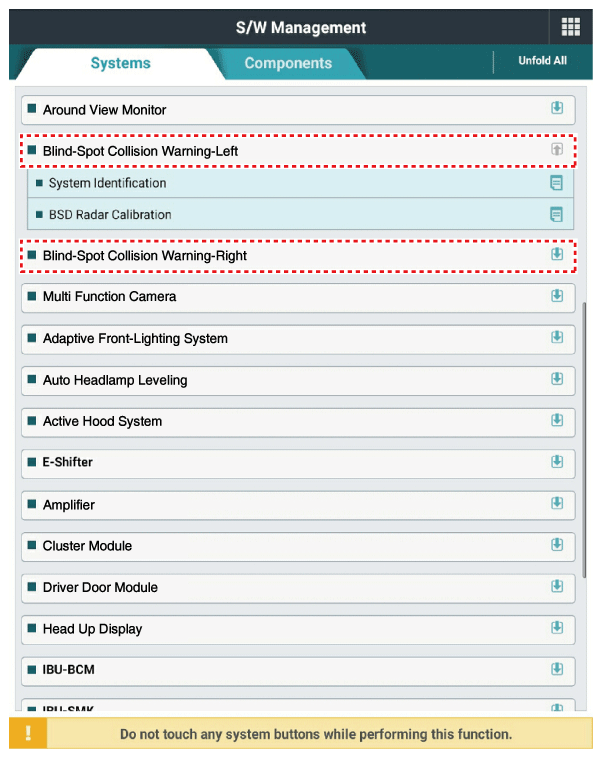

    G12920769Courtesy of KIA MOTORS AMERICA, INC.
    G12920770Courtesy of KIA MOTORS AMERICA, INC.
  3. Perform the "BSD Radar Calibration" procedure according to the KDS screen message.

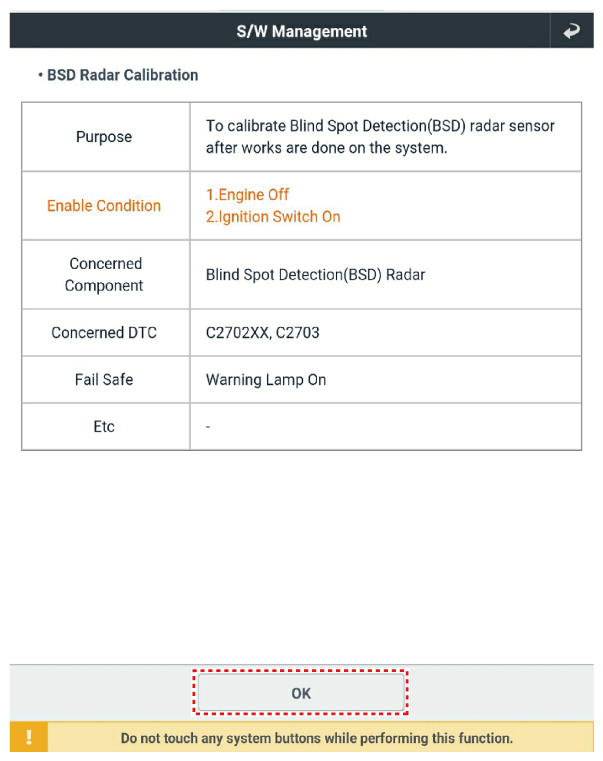

    G12920771Courtesy of KIA MOTORS AMERICA, INC.

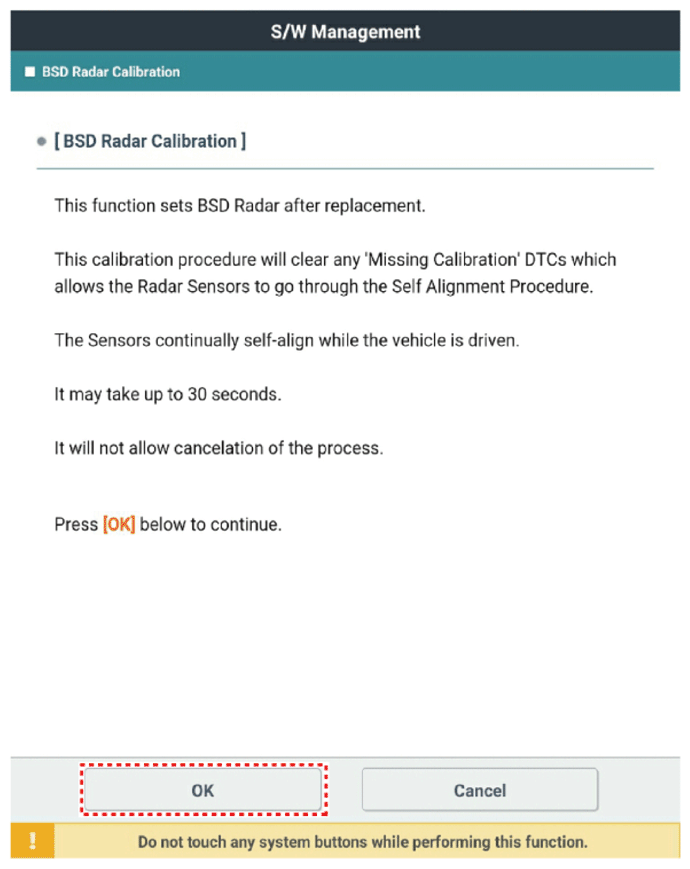

    G12920772Courtesy of KIA MOTORS AMERICA, INC.

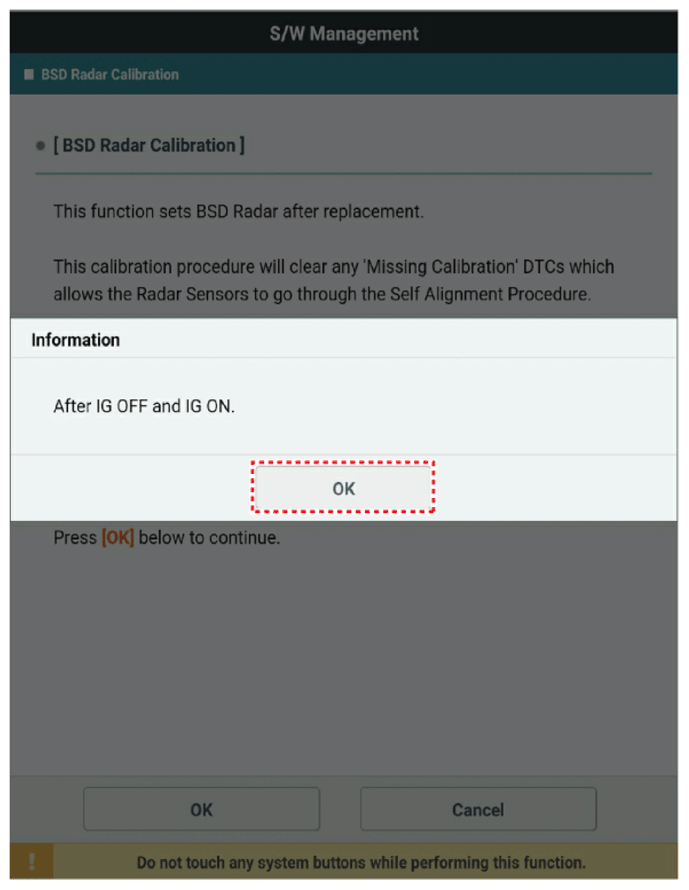

    G12920773Courtesy of KIA MOTORS AMERICA, INC.

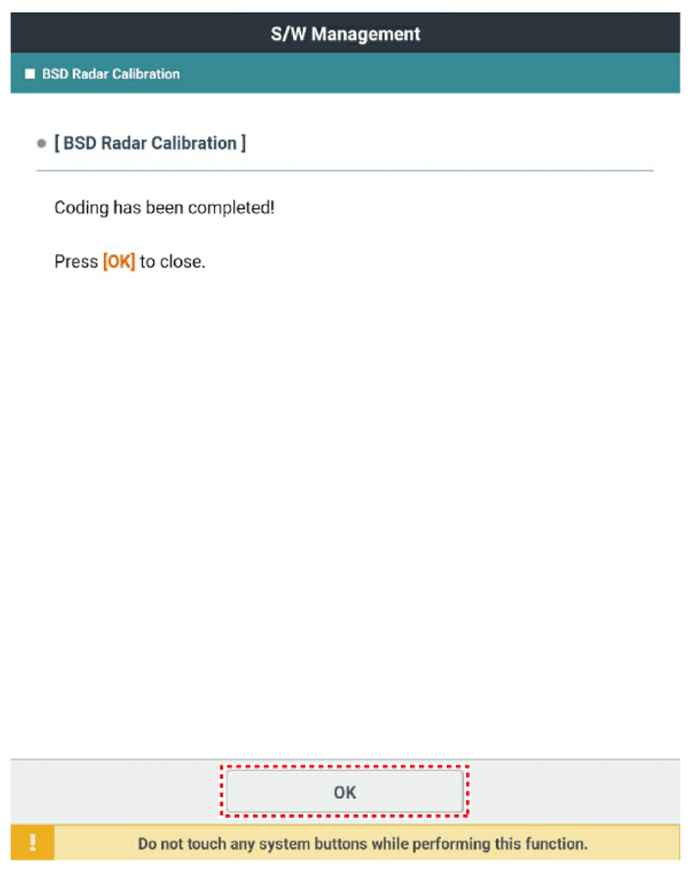

    G12920774Courtesy of KIA MOTORS AMERICA, INC.
