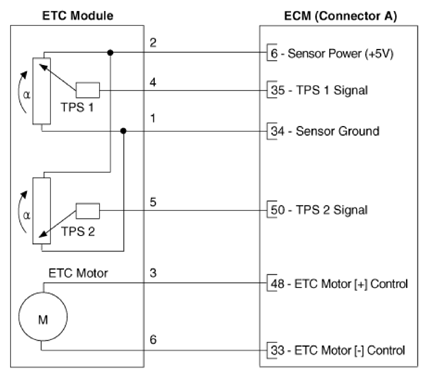

Home >> Kia >> 2019 >> Niro Plug-In Hybrid LX >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (PHEV) >> ETC (Electronic Throttle Control) System >> Schematic Diagrams >> Circuit Diagram
