Repair Procedures: Removal

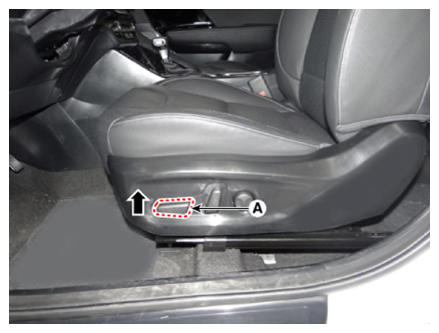

  1. Before removing the driver side seat assembly, pull it upward to the maximum by pushing the front seat height adjusting switch (A).
    G12698300Courtesy of KIA MOTORS AMERICA, INC.
  2. Disconnect the negative (-) battery terminal
  3. Remove the driver front seat assembly.

    (Refer to Body - " FRONT SEAT ASSEMBLY  ")

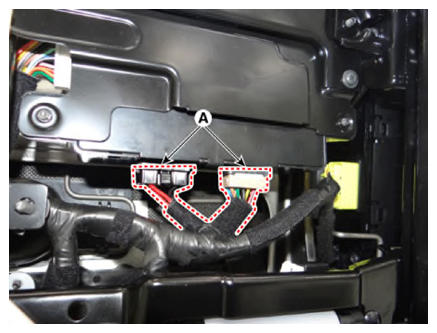

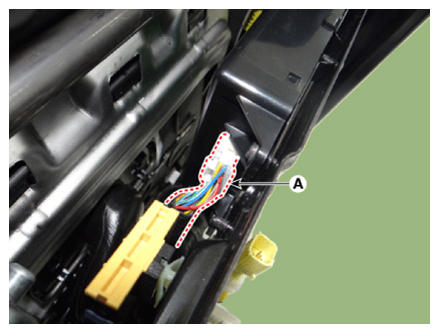

  4. Disconnect the IMS unit connectors (A).
    G12698301Courtesy of KIA MOTORS AMERICA, INC.
    G12698302Courtesy of KIA MOTORS AMERICA, INC.

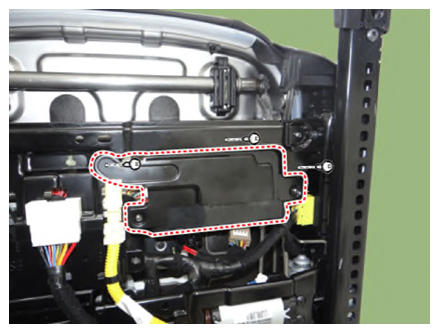

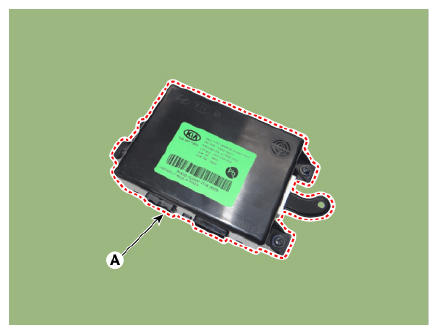

  5. Remove the IMS unit (A) after loosening the mounting screws.
    G12698303Courtesy of KIA MOTORS AMERICA, INC.
    G12698304Courtesy of KIA MOTORS AMERICA, INC.
