Components & Components Location: Components

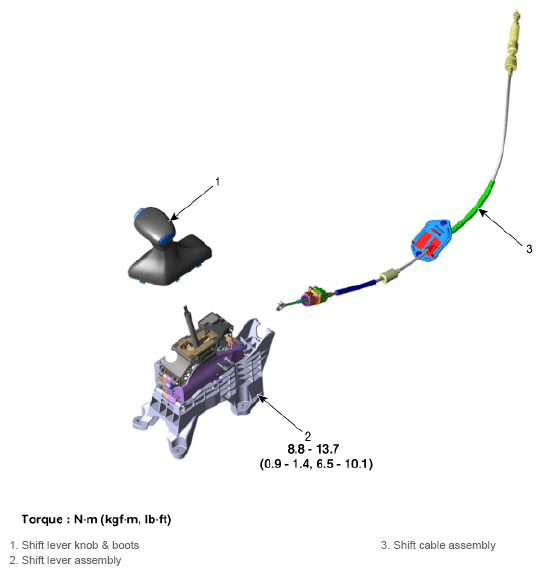

Fig 1: Shift Lever Components Location With Torque Specification

G12696563

Courtesy of KIA MOTORS AMERICA, INC.
