Repair Procedures: Installation

Install the shift cable.

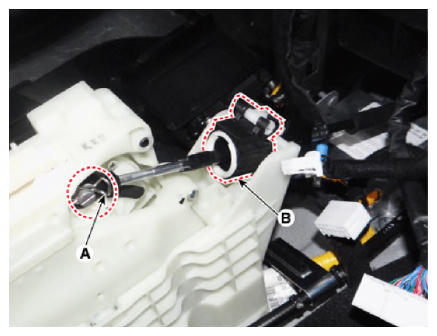

Install the shift cable to the lever pin and then insert the snap pin (A).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

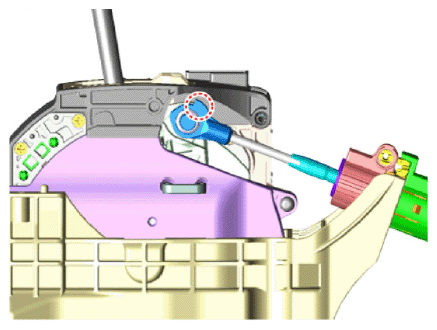

Install the shift cable after checking the direction of projection to prevent incorrect assembly.

Courtesy of KIA MOTORS AMERICA, INC.

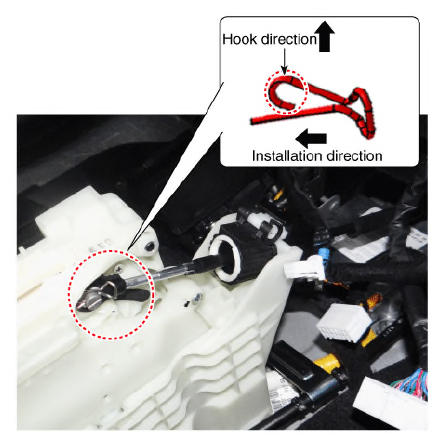

Mind the installation direction of snap pin and install the snap pin with the hook facing upward.

Courtesy of KIA MOTORS AMERICA, INC.

Install the floor console assembly.
(Refer to " FLOOR CONSOLE ASSEMBLY ")

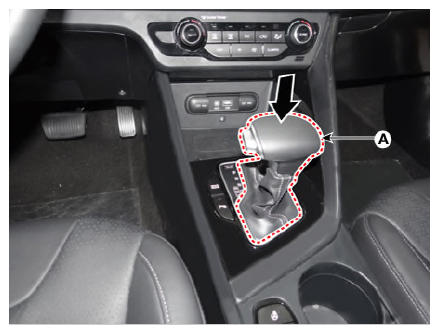

Install the knob (A) by pressing it in the direction of arrow after installing the boots to the console upper cover.

Courtesy of KIA MOTORS AMERICA, INC.

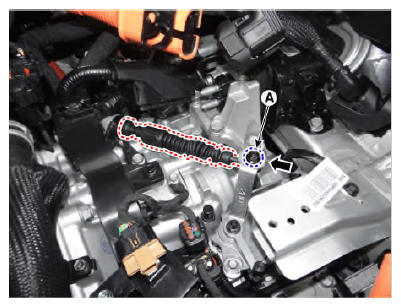

Tighten the nut (A) to the specified torque after removing free play by pushing the shift cable in the direction of the arrow.

Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

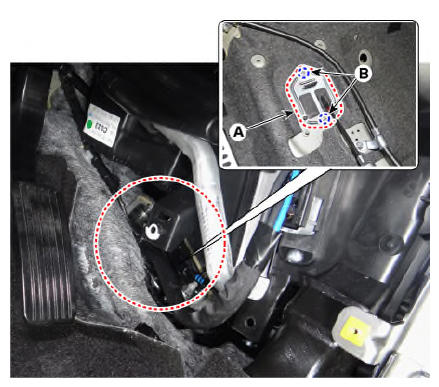

NOTE: The existing shift cable clip (A) must be replaced with new one. (Do not reuse it.)

Courtesy of KIA MOTORS AMERICA, INC.

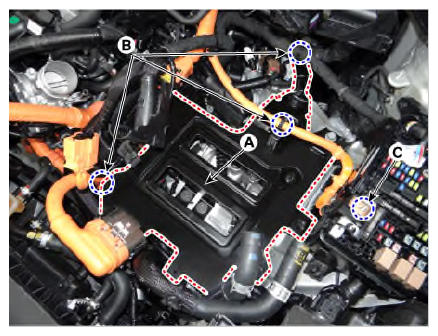

Install the HPCU tray (A).
Tightening torque:
1. 21.6 - 23.5 N.m (2.2 - 2.4 kgf.m, 15.9 - 17.4 lb.ft)
Install the wiring mounting clips (B) to HPCU tray and the tighten the nut (C).
Tightening torque:

(C) 10.8 - 13.7 N.m (1.1 - 1.4 kgf.m, 8.0 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

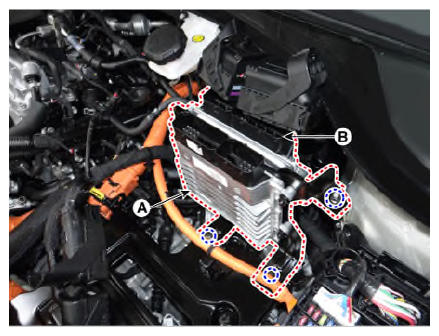

Install the TCM (A) and ECM (B).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

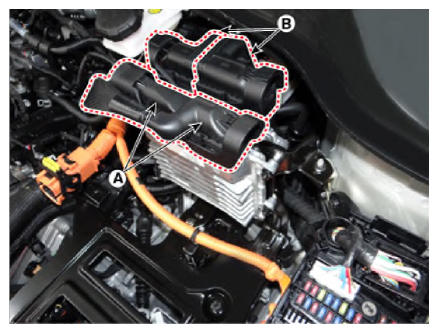

Connect the TCM connector (A) and ECM (B) connector.

Courtesy of KIA MOTORS AMERICA, INC.
Install the hybrid power control unit (HPCU) assembly.
(Refer to " HYBRID POWER CONTROL UNIT ")
Refill the hybrid motor cooling system with coolant.
(Refer to " COOLANT ")
Connect the high voltage circuit.
(Refer to " HIGH VOLTAGE SHUT-OFF PROCEDURE ")
