Repair Procedures: Replacement

Disconnect the battery negative cable.
Turn the steering wheel so that the front wheels are facing straight ahead.
Remove the driver airbag module.
(Refer to " DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")
Disconnect the connector.

Courtesy of KIA MOTORS AMERICA, INC.

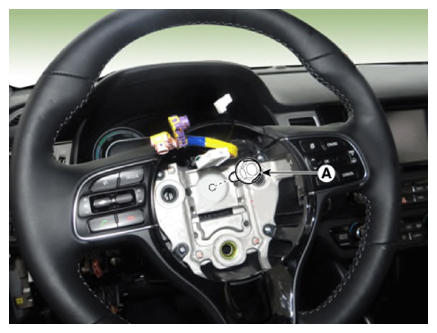

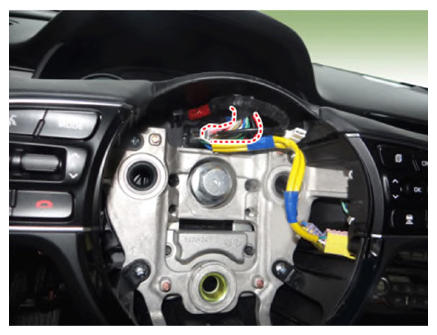

Loosen the bolt (A) and then remove the steering wheel.
Tightening torque:

39.2 - 49.0 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
- Do not hammer on the steering wheel to remove it; it may damage the steering column.
- Do not reuse the bolt.

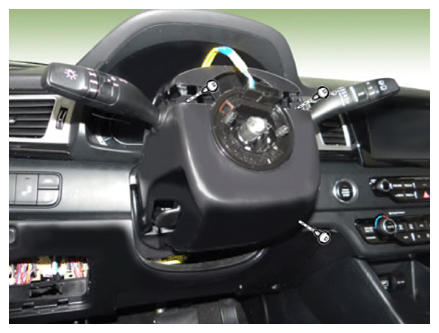

Loosen the screw and then remove the lower shroud.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the clock spring.
(Refer to " DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")

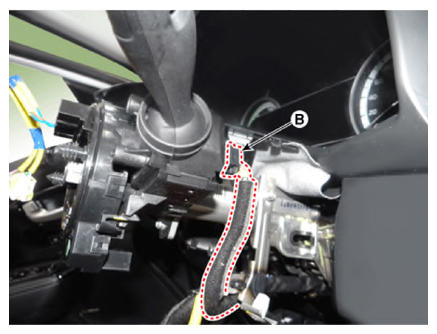

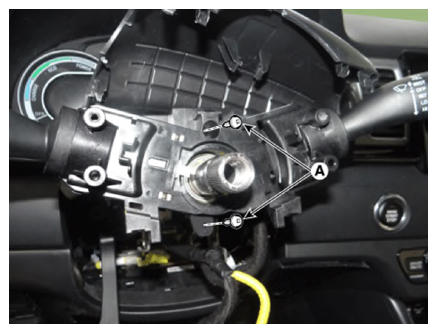

Loosen the screw (A) and disconnect the connector (B) to remove the multifunction switch.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the crash pad lower panel.
(Refer to " CRASH PAD LOWER PANEL ")
Remove the knee airbag.
(Refer to " KNEE AIRBAG (KAB) ")

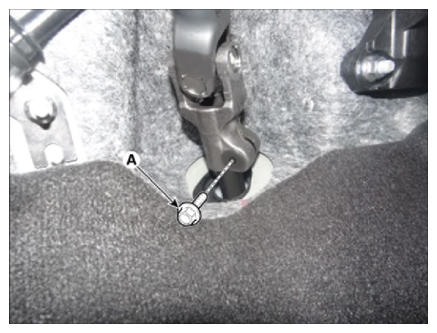

Remove the universal joint bolt (A).
Tightening torque:

32.4 - 37.3 N.m (3.3 - 3.8 kgf.m, 23.9 - 27.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
- Keep the neutral-range to prevent damaging the clock spring inner cable when steering the wheel.
- Do not reuse the bolt.

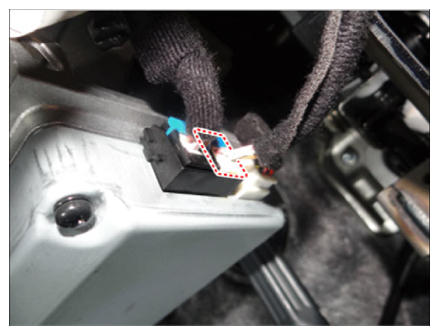

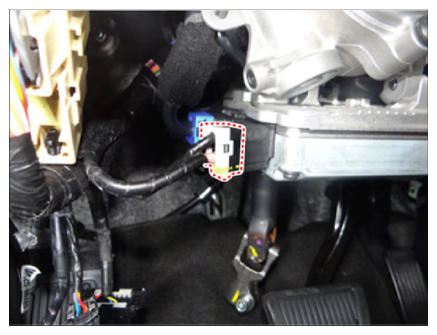

Disconnect the MDPS connector.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

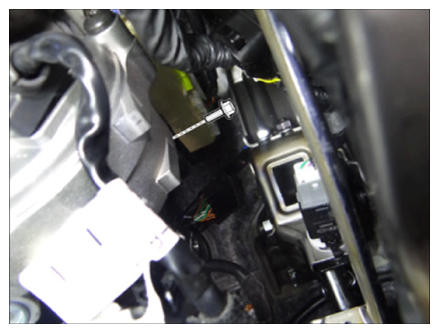

Loosen the steering column nuts.
Tightening torque:

24.5 - 29.4 N.m (2.5 - 3.0 kgf.m, 18.1 - 21.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

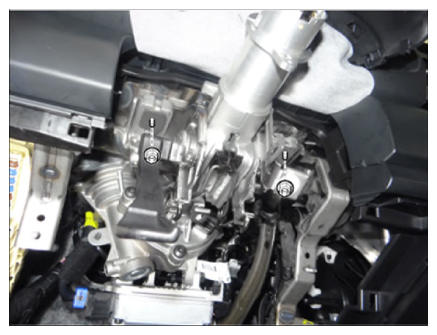

Loosen the steering column bolt and then remove the steering column.
Tightening torque:

53.9 - 58.8 N.m (5.5 - 6.0 kgf.m, 39.8 - 43.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
