Repair Procedures: Replacement

Information

• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Be careful not to bend or scratch the trim and panels.

[Liftgate Upper Trim]

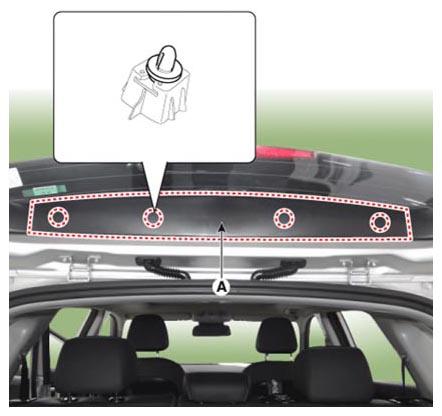

1. Using a remover, remove the Liftgate upper trim (A).

   Courtesy of KIA MOTORS AMERICA, INC.

2. Install in the reverse order of removal.

   Information

   Replace any damaged clips.

[Liftgate Side Trim]

1. Remove the Liftgate trim (A).

   Courtesy of KIA MOTORS AMERICA, INC.

2. Remove the Liftgate upper trim (A).

   Courtesy of KIA MOTORS AMERICA, INC.

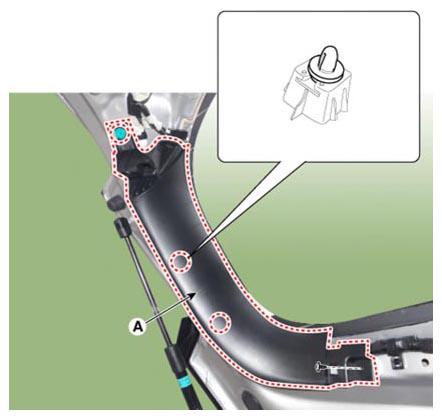

3. Remove the Liftgate side trim (A) after loosening the mounting screw.

   Courtesy of KIA MOTORS AMERICA, INC.

4. Install in the reverse order of removal.

   Information

   Replace any damaged clips.

[Liftgate Trim]

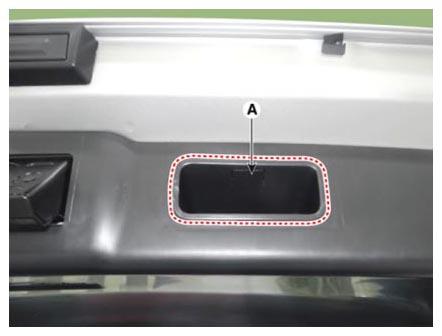

1. Remove the Liftgate pull handle caps (A).

   Courtesy of KIA MOTORS AMERICA, INC.

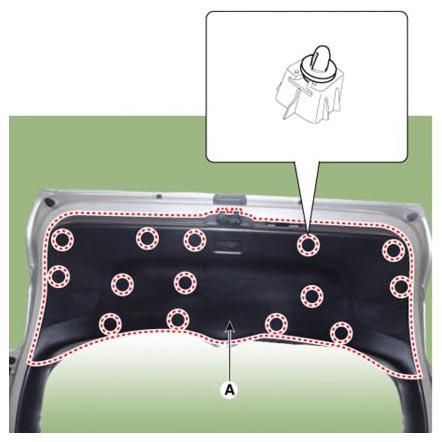

2. Remove the Liftgate trim (A) after loosening the mounting screws and clips.

   Courtesy of KIA MOTORS AMERICA, INC.

3. Install in the reverse order of removal.

   Information

   Replace any damaged clips.
