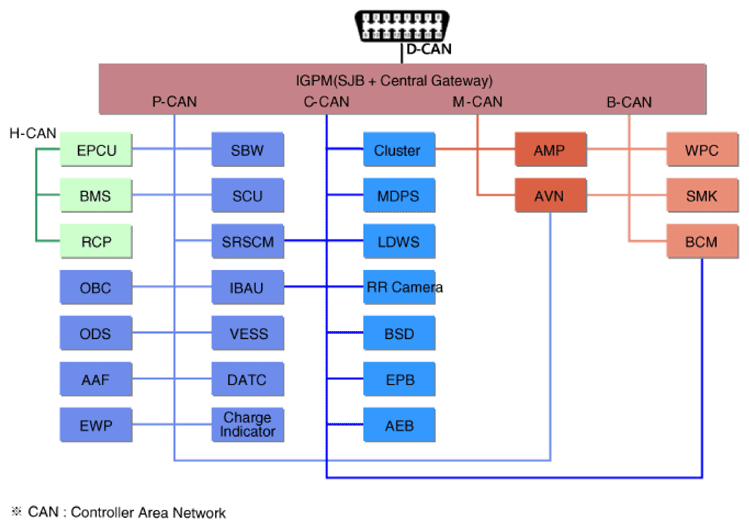

Communication Network Diagram
WARNING: This page is about a different car, the 2018 Hyundai Ioniq. However, it is still accessible from the selected car via links, so may be relevant.
| Abbreviation | Explanation |
|---|---|
| AAF | Active Air Flap |
| OBC | On-Board Battery Chargers |
| VESS | Virtual Engine Sound System |
| DATC | Dual Automatic Temp Control |
| RCP | Rapid Charge Port |
| B CAN | Body Controller Area Network |
| C_CAN | Chassis Controller Area Network |
| BCM | Body Control Module |
| Cluster | Cluster Module |
| RR Camera | Rear View Camera |
| LDWS | Lane Departure Warning System |
| MDPS | Motor Driven Power Steering |
| BSD | Blind Spot Detection |
| EPB | Electronic Parking Brake |
| AEB | Autonomous Emergency Braking |
| AMP | Amplifier |
| AVN | Head Unit (Audio/AVN) |
| SJB | Smart Junction Block |
| SMK | Smart Key Unit |
| M_CAN | Multi media Controller Area Network |
| P_CAN | Powertrain Controller Area Network |
| IGPM | Intergrated Gateway & Power control Module |
| BMS | Battery Management System |
| ODS | Occupant Detection System |
| EWP | Electric Water Pump |
| WPC | Wireless Power Charger |
| SBW | Shift By Wire |
| SRSCM | Supplemental Restraint System Control Module |
| EPCU | Electric Power Control Unit |
| IBAU | Intergrated Brake Actuation Unit |
