Components And Components Location: Components
WARNING: This page is about a different car, the 2018 Hyundai Ioniq. However, it is still accessible from the selected car via links, so may be relevant.

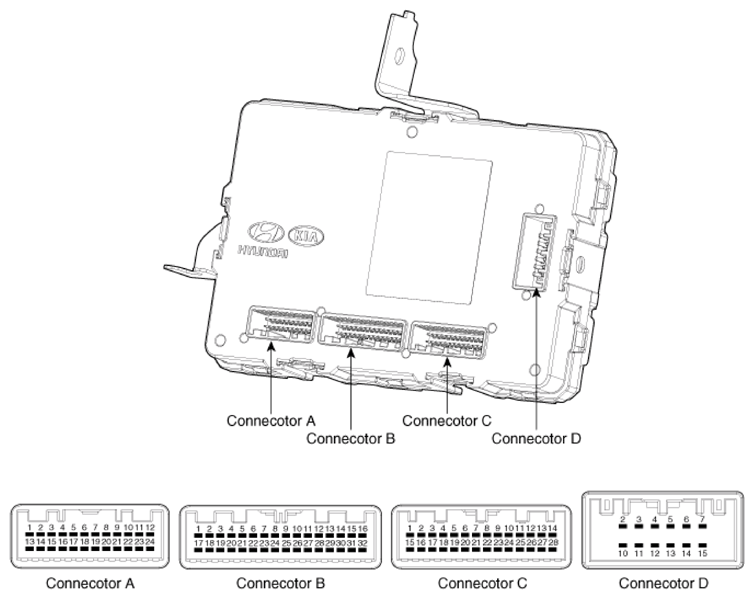

| NO | Connector A | Connector B | Connector C | Connector D |
|---|---|---|---|---|
| 1 | - | - | Wiper low relay | - |
| 2 | - | Steering heated switch | Auto light ground | IGN 1 |
| 3 | Rear left seat belt indicator | - | PAS ON Indicator | IG2 Steering heated power 1 |
| 4 | Passenger seat belt indicator | - | Steering heated indicator | IG2 Steering heated power 2 |
| 5 | Rear center seat belt indicator | Light switch | - | IG2 Steering heated power output |
| 6 | Rear right seat belt indicator | - | - | Room lamp |
| 7 | - | - | Crash signal | Ground |
| 8 | - | PAS Input | Auto light sensor | - |
| 9 | Mirror unfolding relay | - | NTC Sensor | - |
| 10 | - | Sunroof open switch | Head lamp switch (High) | Power |
| 11 | - | PAS ON Switch | - | - |
| 12 | - | Multifunction switch ground | Wiper int vol relay | - |
| 13 | - | - | Front wiper switch | RPAS Power |
| 14 | - | - | foglamp switch | FPAS Power |
| 15 | - | - | Wiper relay (High) | Ground signal |
| 16 | - | - | Auto light (Power) | |
| 17 | Security indicator | - | Sunroof enable (High) | |
| 18 | Pocket lamp output | - | - | |
| 19 | Safety power window down (Low) | C-Can (Low) | - | |
| 20 | - | C-Can (High) | - | |
| 21 | - | B-CAN (Low) | Front wiper low backup switch | |
| 22 | - | B-CAN (High) | NTC Ground | |
| 23 | Mirror folding relay output | - | IGN 2 | |
| 24 | - | Rain sensor_LIN | ACC | |
| 25 | PAS_LIN | - | ||
| 26 | - | Front wiper washer switch | ||
| 27 | - | Blade position | ||
| 28 | Defogger switch | Brake switch | ||
| 29 | Rain sensor option_input | |||
| 30 | - | |||
| 31 | Front door open switch | |||
| 32 | Rear door open switch |
