Circuit Diagram

WARNING: This page is about a different car, the 2018 Hyundai Ioniq. However, it is still accessible from the selected car via links, so may be relevant.

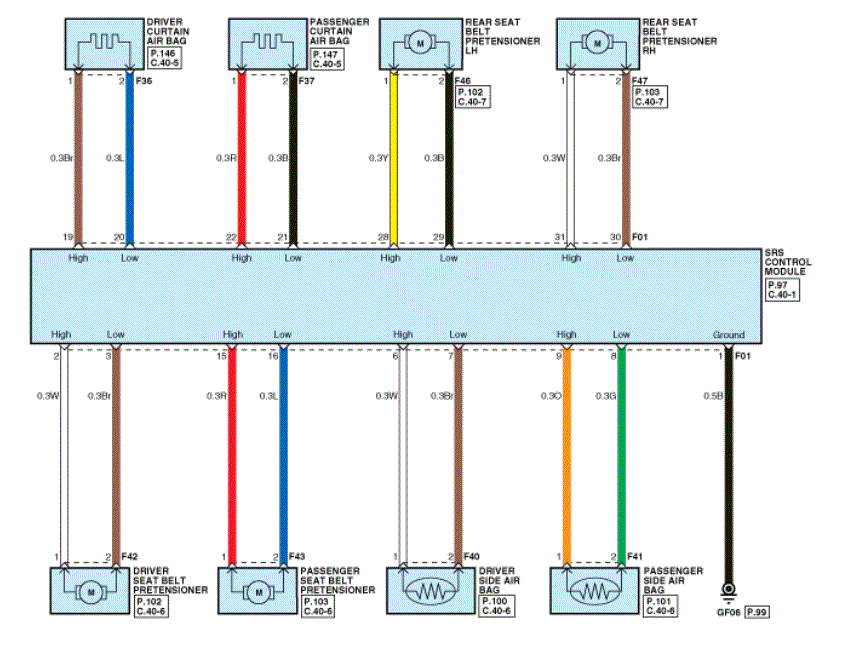

Fig 1: Air Bag System Circuit Diagram (1 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

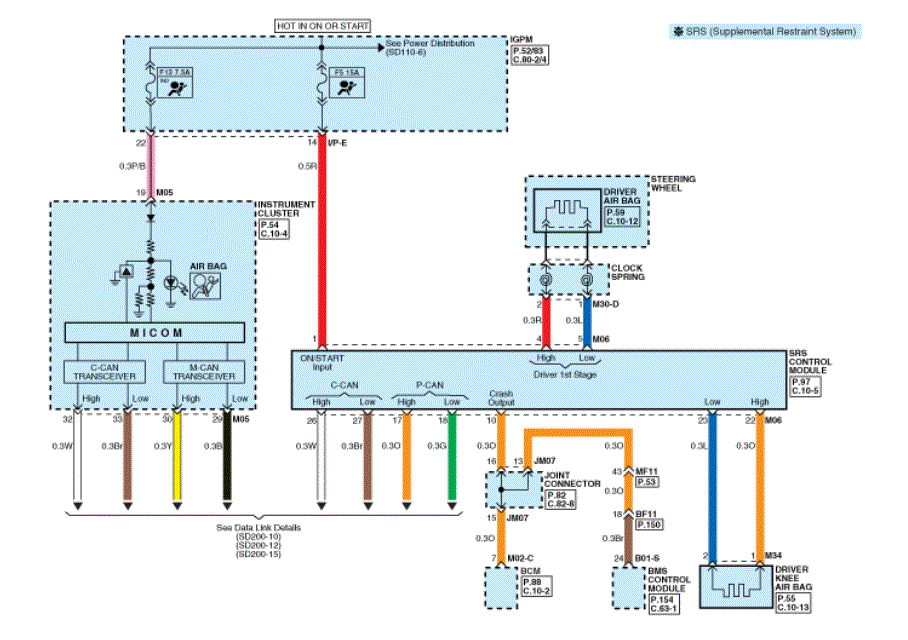

Fig 2: Air Bag System Circuit Diagram (2 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

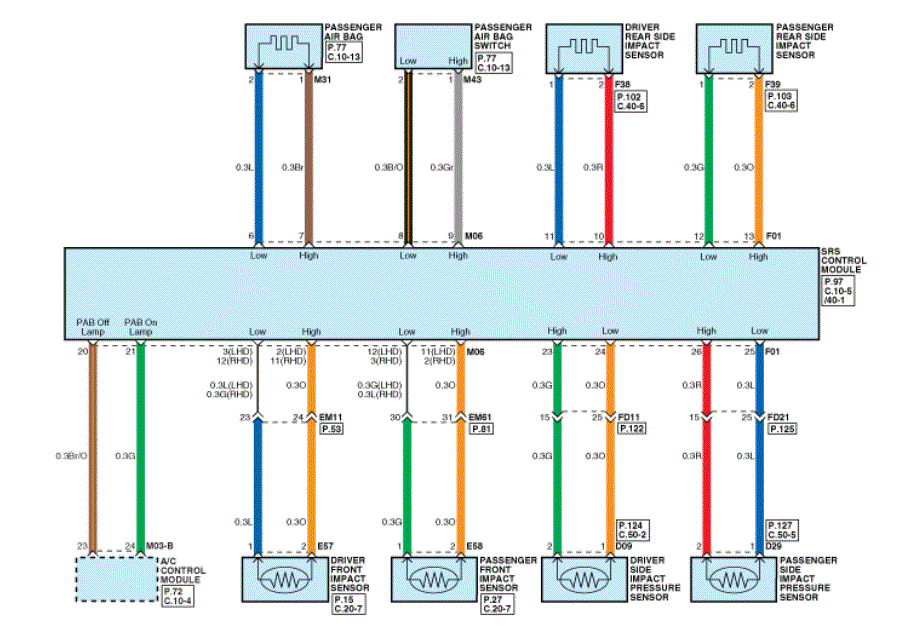

Fig 3: Air Bag System Circuit Diagram (3 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA
