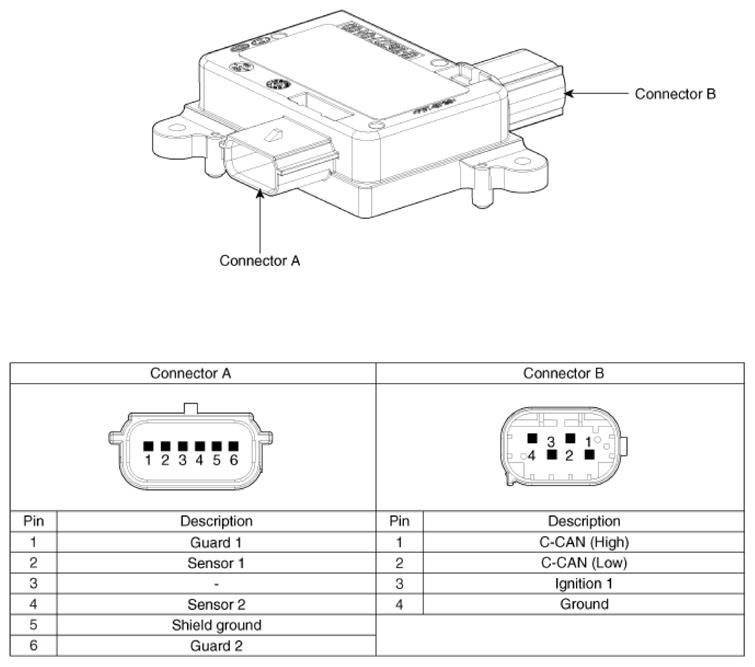

Occupant Classification System (OCS) Unit

WARNING: This page is about a different car, the 2018 Hyundai Ioniq. However, it is still accessible from the selected car via links, so may be relevant.
G12728038Courtesy of HYUNDAI MOTOR AMERICA
