Monitor GDS Data
WARNING: This page is about a different car, the 2019 Hyundai Ioniq, 2018 Hyundai Ioniq, and 2017 Hyundai Ioniq. However, it is still accessible from the selected car via links, so may be relevant.
- Vehicle parked & Ignition switch 'ON'.
- Connect GDS and select "DTC Analysis" mode.

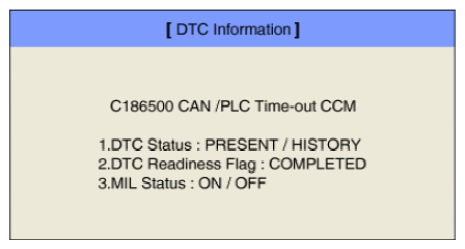

- Click "DTC Status" on the "Diagnostic Trouble Codes(DTC)" menu bar to view "DTC Information".
- If DTC Status is "Present" fault, then go to the next procedure, and if it is "History" fault, then clear DTC and check the same DTC reoccurs.
- Is parameter displayed "Present" fault?
YES
- Go to next procedure.
NO
- Fault is intermittent caused by poor contact in the sensor's and/or Control module's connector or was repaired and Control module's memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary, and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
