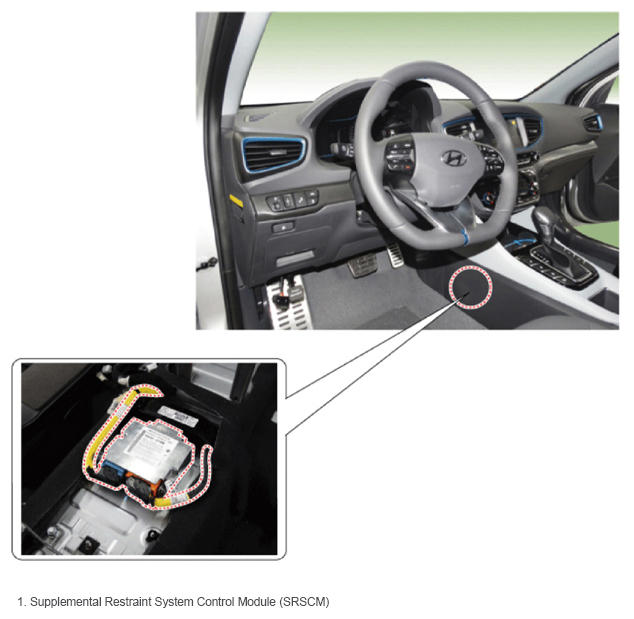

Supplemental Restraint System Control Module (SRSCM)

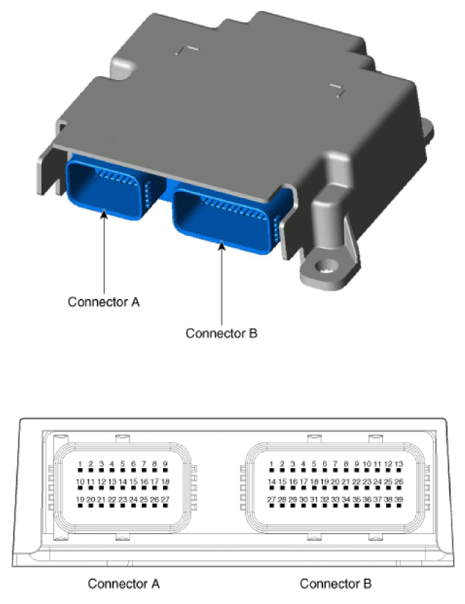

| No | Connector A | Connector B |
|---|---|---|
| 1 | IGN 1 | Ground |
| 2 | Driver front impact sensor - High (+) | Driver seat belt pretensioner - High (+) |
| 3 | Driver front impact sensor - Low (-) | Driver seat belt pretensioner - Low (-) |
| 4 | Driver airbag 1st stage - High (+) | Driver emergency fastening device - Low (-) |
| 5 | Driver airbag 1st stage - Low (-) | Driver emergency fastening device - High (+) |
| 6 | Passenger airbag 1st stage - Low (-) | Driver side airbag - High (+) |
| 7 | Passenger airbag 1st stage - High (+) | Driver side airbag - Low (-) |
| 8 | - | Passenger side airbag - Low (-) |
| 9 | - | Passenger side airbag - High (+) |
| 10 | Crash signal output | Driver side impact sensor - High (+) |
| 11 | Passenger front impact sensor - High (+) | Driver side impact sensor - Low (-) |
| 12 | Passenger front impact sensor - Low (-) | Passenger side impact sensor - Low (-) |
| 13 | Driver airbag 2nd stage - High (+) | Passenger side impact sensor - High (+) |
| 14 | Driver airbag 2nd stage - Low (-) | - |
| 15 | Passenger airbag 2nd stage - Low (-) | Passenger seat belt pretensioner - High (+) |
| 16 | Passenger airbag 2nd stage - High (+) | Passenger seat belt pretensioner - Low (-) |
| 17 | P-CAN (High) | Passenger emergency fastening device - Low (-) |
| 18 | P-CAN (Low) | Passenger emergency fastening device - High (+) |
| 19 | - | Driver curtain airbag - High (+) |
| 20 | Passenger airbag indicator | Driver curtain airbag - Low (-) |
| 21 | - | Passenger curtain airbag - Low (-) |
| 22 | Driver Knee Airbag - High (+) | Passenger curtain airbag - High (+) |
| 23 | Driver Knee Airbag - Low (-) | Driver Passenger side impact sensor - High (+) |
| 24 | - | Driver pressure side impact sensor - Low (-) |
| 25 | - | Passenger pressure side impact sensor - Low (-) |
| 26 | C-CAN (High) | Passenger pressure side impact sensor - High (+) |
| 27 | C-CAN (Low) | - |
| 28 | - | |
| 29 | - | |
| 30 | - | |
| 31 | - | |
| 32 | - | |
| 33 | - | |
| 34 | - | |
| 35 | - | |
| 36 | - | |
| 37 | - | |
| 38 | - | |
| 39 | - |
