Section 114 (Supplemental Restraint System Control Module (SRSCM) And Sensors (EV))
>>
Occupant Classification System (OCS)
>>
Components and Components Location
>>
Components
>>

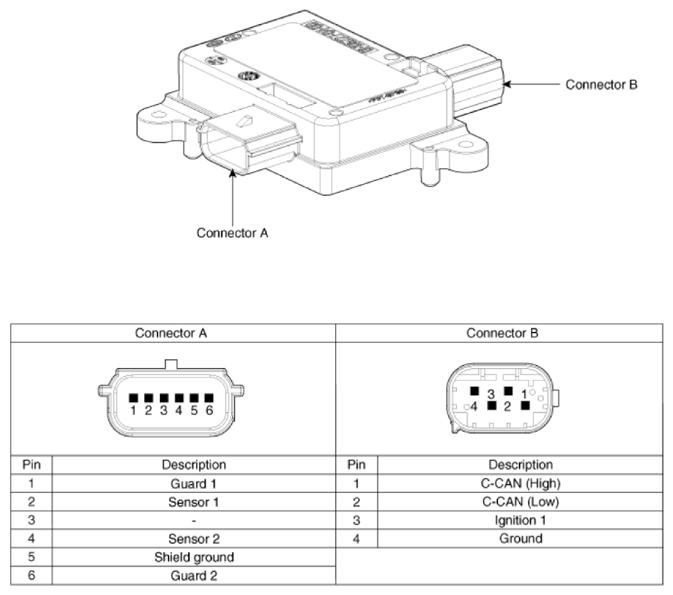

Occupant Classification System (OCS) Unit
Occupant Classification System (OCS) Unit
WARNING:
This page is about a different car, the 2019 Hyundai Ioniq, 2018 Hyundai Ioniq, and 2017 Hyundai Ioniq. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of HYUNDAI MOTOR AMERICA
