Component Location

WARNING: This page is about a different car, the 2018 Hyundai Ioniq. However, it is still accessible from the selected car via links, so may be relevant.

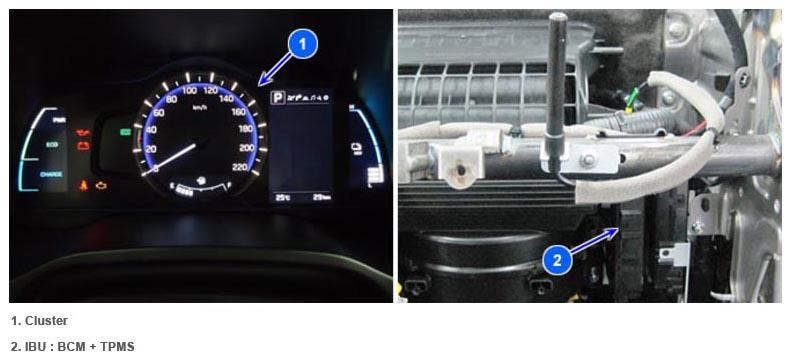

G12744966Courtesy of HYUNDAI MOTOR AMERICA
NOTE: IBU (Integrated Body control Unit): "BCM"
BCM (Body Control Module): "BCM"
TPMS (Tire Pressure Monitoring System module): "BCM"
