Component Location

WARNING: This page is about a different car, the 2018 Hyundai Ioniq. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of HYUNDAI MOTOR AMERICA

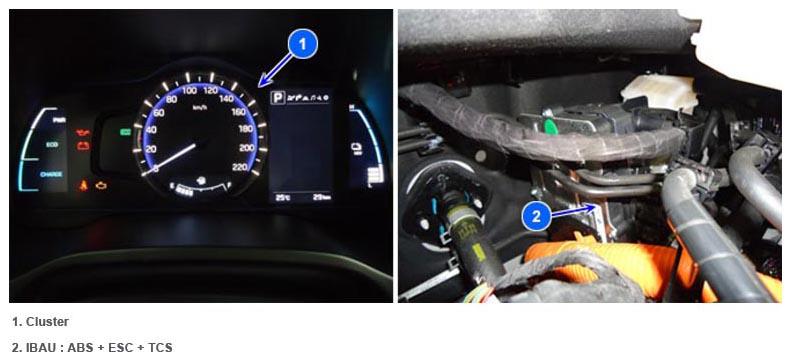

NOTE: Cluster: "INSTRUMENT CLUSTER"
IBAU (Integrated Brake Actuation Unit): "IBAU"
ABS (Antilock Brake System): "IBAU"
ESC (Electronic Stability Control): "IBAU"
TCS (Traction Control System): "IBAU"
