Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the battery (-) cable.
    CAUTION: Disconnect the battery negative terminal and wait for at least thirty seconds before beginning work.
  2. Remove the driver's seat.

    (Refer to " FRONT SEAT ASSEMBLY  ")

  3. Remove the front door scuff trim.

    (Refer to " DOOR SCUFF TRIM  ")

  4. Remove the cowl side trim.

    (Refer to " COWL SIDE TRIM  ")

  5. It is removing the floor console assembly.

    (Refer to " FLOOR CONSOLE ASSEMBLY  ")

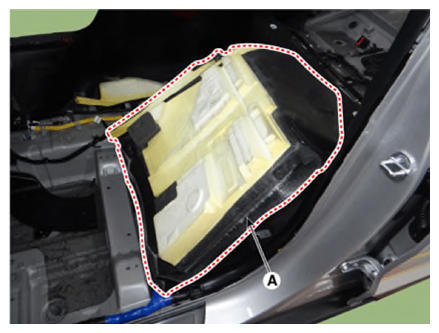

  6. Fold the floor carpet (A) to backward.
    G12697119Courtesy of KIA MOTORS AMERICA, INC.

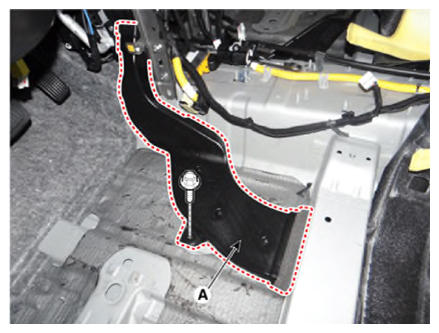

  7. Remove the clip and take off the rear heating ducts (A).
    G12697120Courtesy of KIA MOTORS AMERICA, INC.

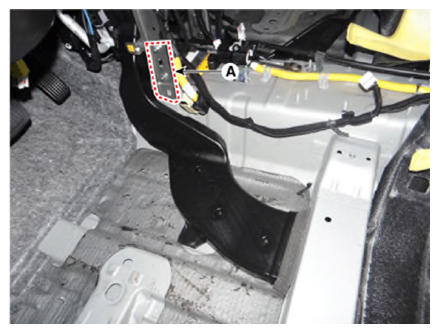

  8. Remove the cowl cross bar and the bracket (A).
    G12697121Courtesy of KIA MOTORS AMERICA, INC.

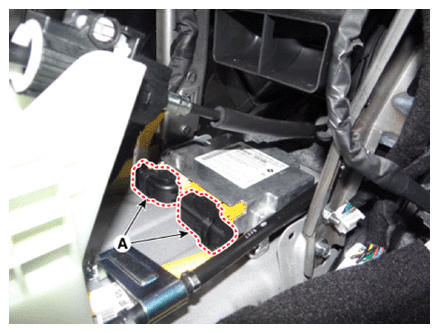

  9. Pull the locking lever of the airbag system control module (SRSCM) connector and remove the connector (A).
    G12697122Courtesy of KIA MOTORS AMERICA, INC.

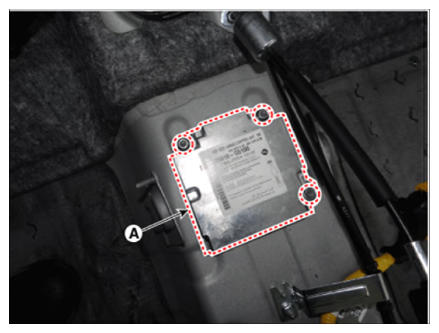

  10. Unscrew the nuts and remove the airbag system control module (A).

    Tightening torque:

    8.0 - 10.0 N.m (0.8 - 1.0 kgf.m, 5.9 - 7.3 lb-ft)

    G12697123Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION: You must remove or install SRSCM or other SRS components with the ignition switch OFF to avoid accidental airbag deployment.
