Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect the battery negative terminal, and wait for at least thirty seconds before beginning work.

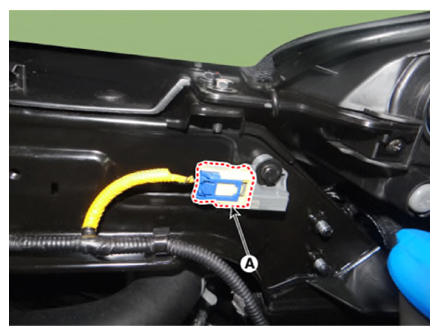

- Disconnect the front impact sensor connector (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|

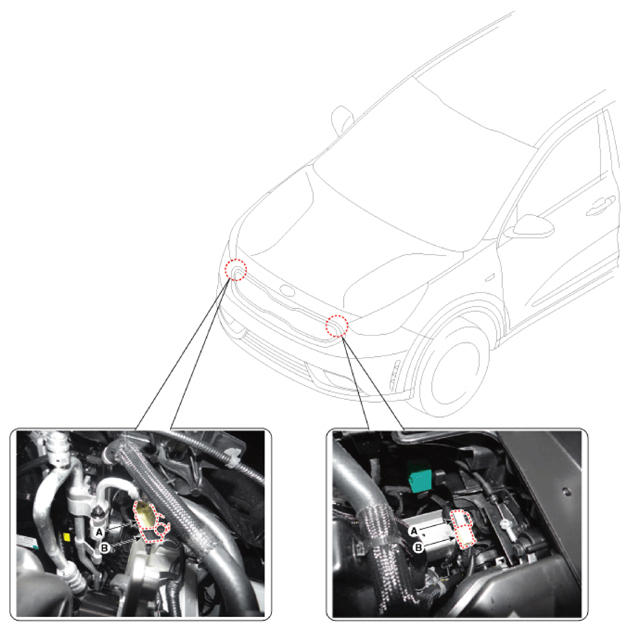

- Loosen the mounting bolts. Remove the front collision detection sensor (B).
Tightening torque:
8.0 - 10.0 N.m (0.8 - 1.0 kgf.m, 5.9 - 7.3 lb-ft)
 Courtesy of KIA MOTORS AMERICA, INC.
|
