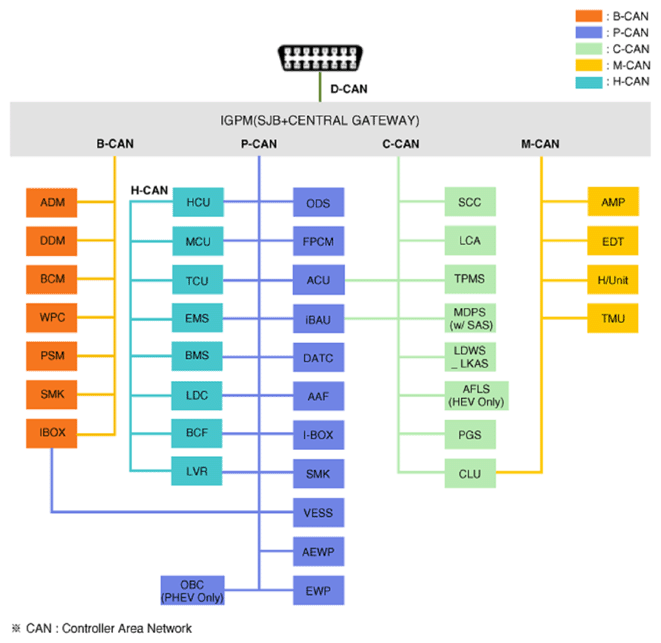

Communication Network Diagram
WARNING: This page is about a different variant/trim than selected.
| Abbreviation | Explanation |
|---|---|
| AAF | Active Air Flap |
| ACU | Airbag Control Unit |
| AEB | Autonomous Emergency Braking |
| AHB | Active Hybrid Brake System |
| AMP | Amplifier |
| AVN | Head Unit (Audio/AVN) |
| B_CAN | Body Controller Area Network |
| BCM | Body Control Module |
| BMS | Battery Management System |
| BSD | Blind Spot Detection |
| C_CAN | Chassis Controller Area Network |
| CARMERA | Rear View Camera |
| CLU | Cluster Module |
| DATC | Dual Automatic Temp Control |
| FPCM | Fuel Pump Control Module |
| HPCU | Hybrid Power Unit |
| IGPM | Intergrated Gateway & Power control Module |
| LDWS | Lane Departure Warning System |
| M_CAN | Multi media Controller Area Network |
| MDPS | Motor Driven Power Steering |
| P_CAN | Powertrain Controller Area Network |
| PAS | Parking Assist System |
| OCS | Occupant Classification Sensor |
| SJB | Smart Junction Block |
| SMK | Smart Key Unit |
| TCM (DCT) | Double Clutch Transmission Unit |
| VESS | Virtual Engine Sound System |
