Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.

CAUTION: Put on gloves to protect your hands.

Information

CAUTION:

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.

Remove the Liftgate trim.
(Refer to Liftgate - " LIFTGATE TRIM ")

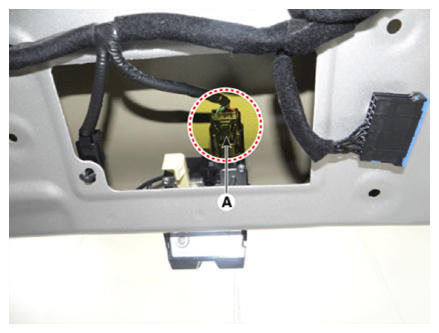

Disconnect the Liftgate latch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

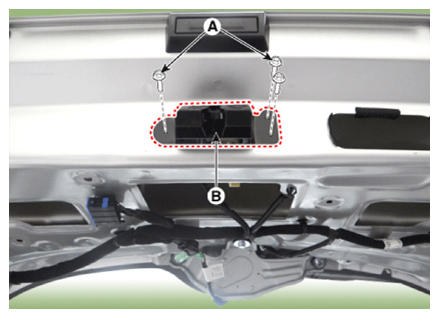

Remove the Liftgate latch assembly (B) after loosening the mounting bolts (A).
Tightening torque:

10.8 - 11.8 N.m (1.1 - 1.2 kgf.m, 8.0 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
CAUTION:
- Make sure that the Liftgate locks/unlocks and opens/closes properly.
- Adjust the Liftgate alignment.
- Make sure the connectors are connected in properly.
