Vehicle S/W Management

WARNING: This page is about a different variant/trim than selected.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Figures below

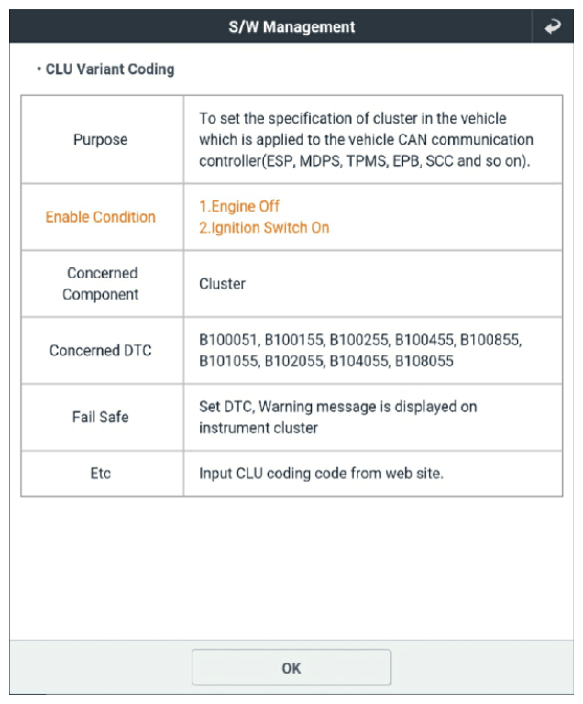

G12699138Courtesy of KIA MOTORS AMERICA, INC.

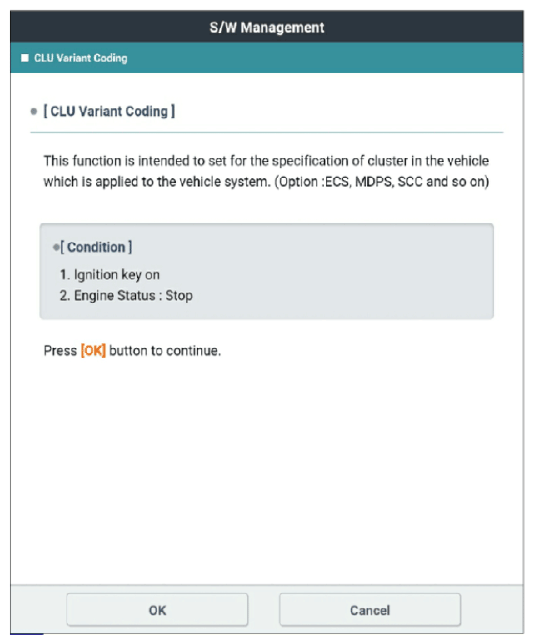

G12699139Courtesy of KIA MOTORS AMERICA, INC.

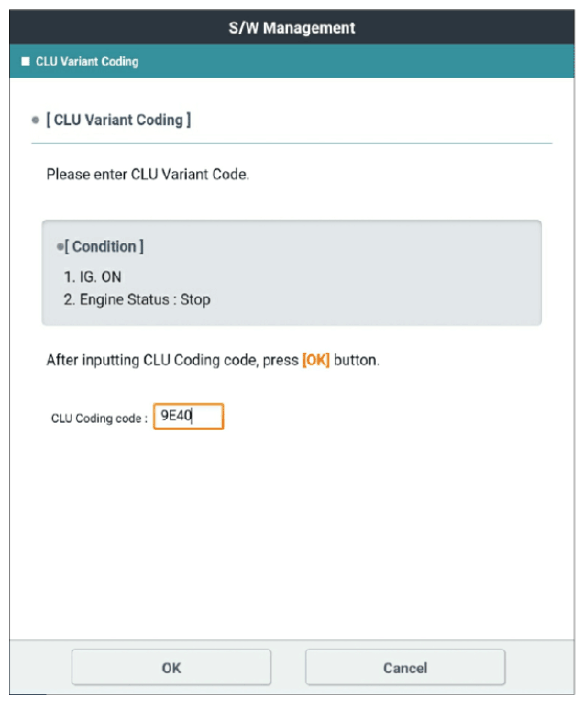

G12699140Courtesy of KIA MOTORS AMERICA, INC.

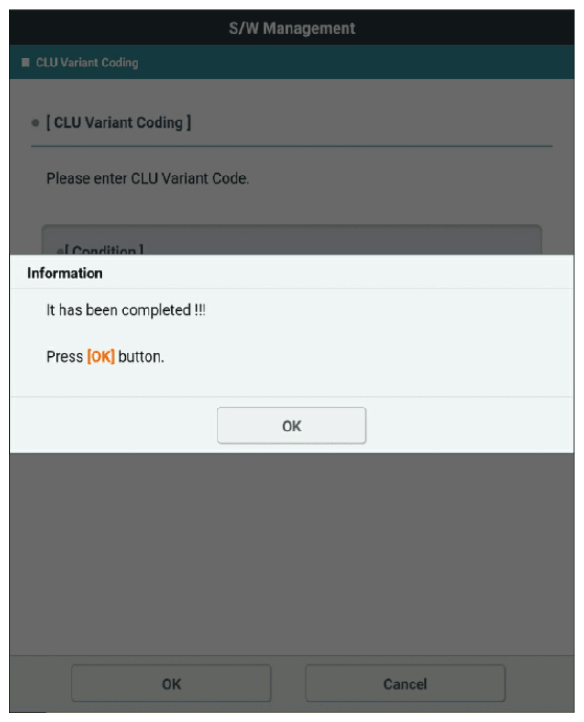

G12699141Courtesy of KIA MOTORS AMERICA, INC.
