Monitor DTC Status

WARNING: This page is about a different variant/trim than selected.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.
 Fig 1

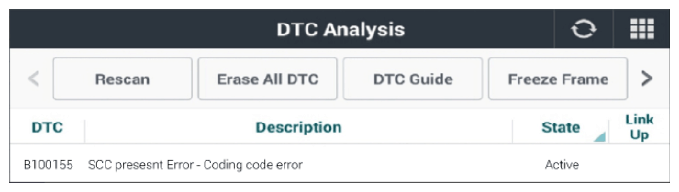

Fig 1: Screen Display - DTC Status
G12699065Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

History/Pending Fault
