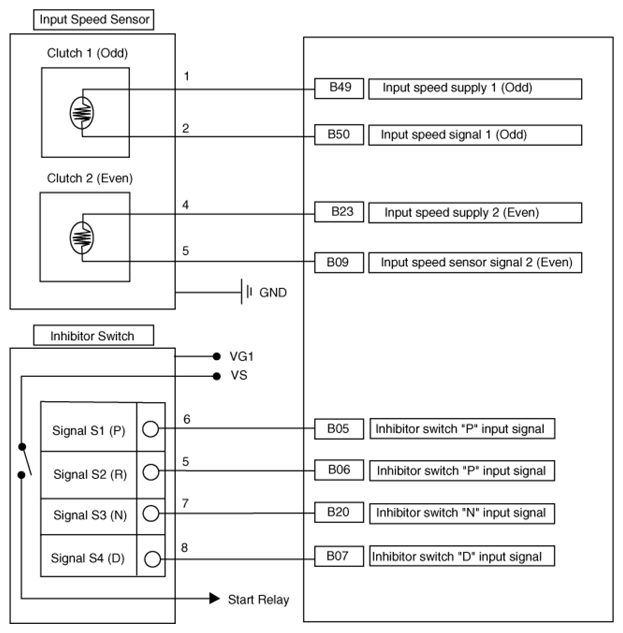

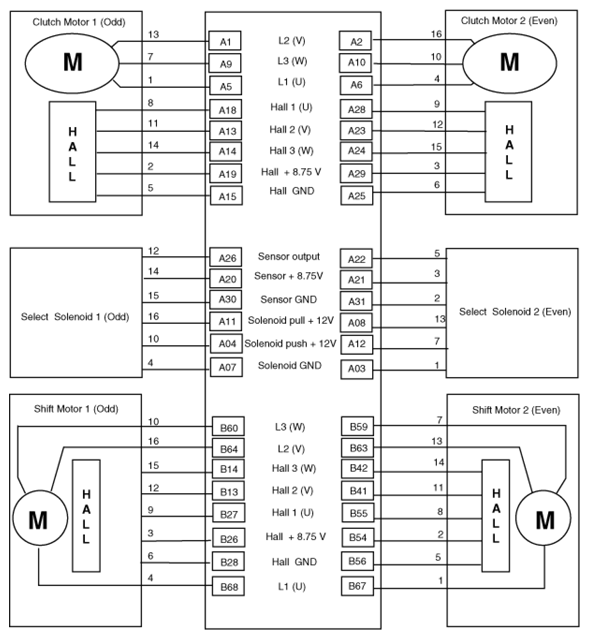

Home >> Kia >> 2019 >> Niro EX >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Dual Clutch Transmission Control System (HEV) >> DCT Control Module (TCM) >> Schematic Diagrams >> Circuit Diagram
