Run Out Inspection

  1. Jack up the vehicle.

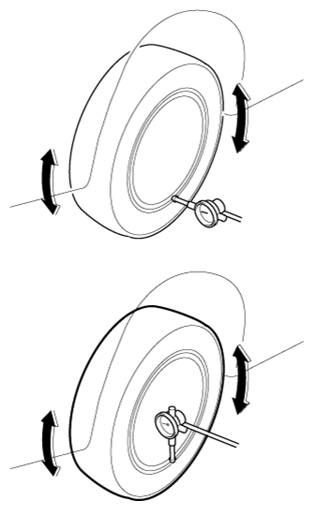

  2. Measure the Wheel Run-Out by using a dial indicator as displayed below.
    Run-Out Aluminum
    Radial mm (in.) Below 0.3 (0.0118)
    Lateral mm (in.) Below 0.3 (0.0118)
  3. If measured value exceeds the standard value, replace the wheel.
    G13004003Courtesy of KIA MOTORS AMERICA, INC.
