Rear Bumper Antenna

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear bumper cover.

    (Refer to Body - " REAR BUMPER COVER  ")

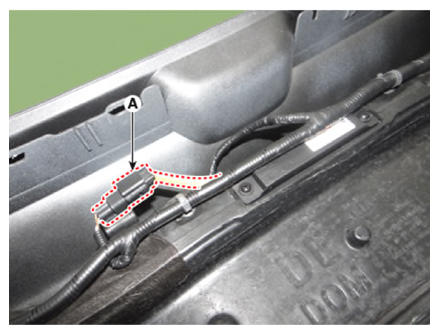

  3. Disconnect the rear bumper antenna connector (A).
    G12704248Courtesy of KIA MOTORS AMERICA, INC.

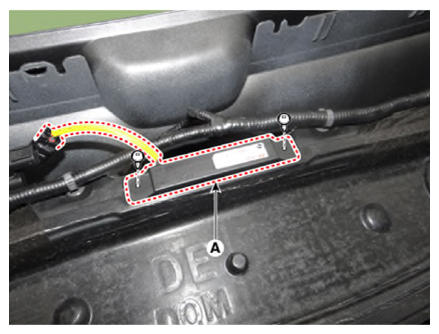

  4. Remove the rear bumper antenna (A) after loosening the mounting screws.
    G12704249Courtesy of KIA MOTORS AMERICA, INC.
