Antenna Status Check

WARNING: This page is about a different variant/trim than selected.
  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.

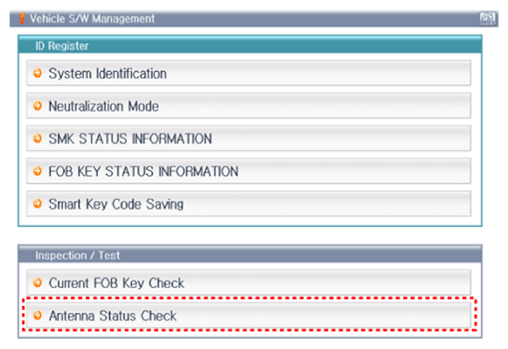

  2. Select the "Antenna Status Check".
    G12704264Courtesy of KIA MOTORS AMERICA, INC.

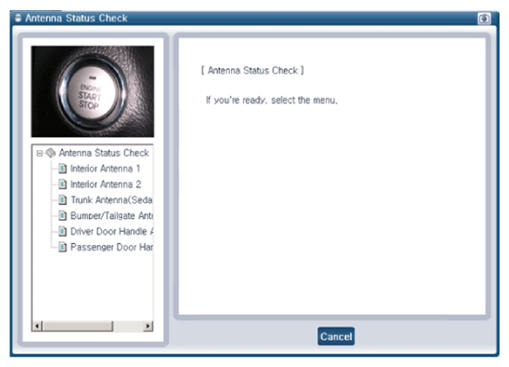

  3. After IG ON, select the "Antenna Status Check".
    G12704265Courtesy of KIA MOTORS AMERICA, INC.
  4. Set the smart key near the related antenna and operate it with a KDS.

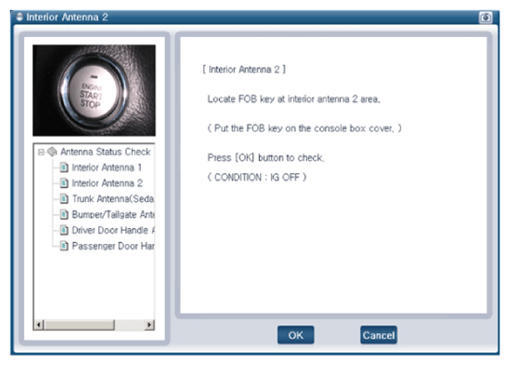

    G12704266Courtesy of KIA MOTORS AMERICA, INC.
    G12704267Courtesy of KIA MOTORS AMERICA, INC.
  5. If the smart key runs normal, the related antenna, smart key (transmission, reception) and exterior receiver are normal.
  6. Antenna status
    • Interior Antenna 1
    • Interior Antenna 2
    • Liftgate Antenna
    • Bumper Antenna
    • Driver Door Antenna
    • Assist Door Antenna
