Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad center lower panel.

    (Refer to " CRASH PAD CENTER PANEL  ")

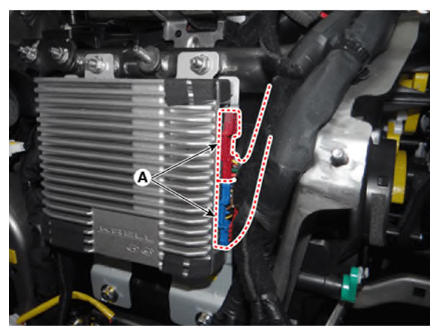

  3. Disconnect the external amplifier connectors (A).
    G12697946Courtesy of KIA MOTORS AMERICA, INC.

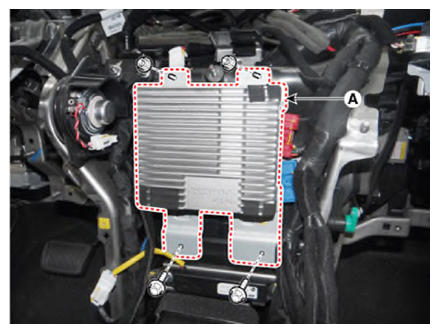

  4. Remove the external amplifier (A) after loosening the mounting bolts and nuts.
    G12697947Courtesy of KIA MOTORS AMERICA, INC.
