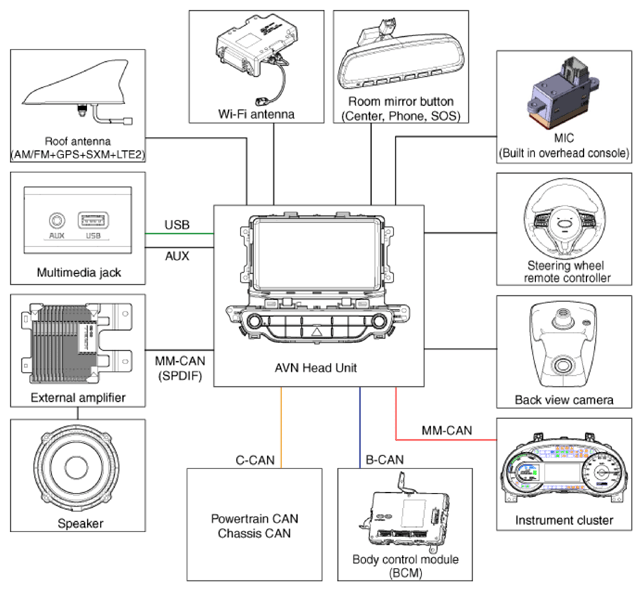

System Block Diagram

WARNING: This page is about a different variant/trim than selected.
G12697925Courtesy of KIA MOTORS AMERICA, INC.
