Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig.1 to 6
G13458481Courtesy of KIA MOTORS AMERICA, INC.

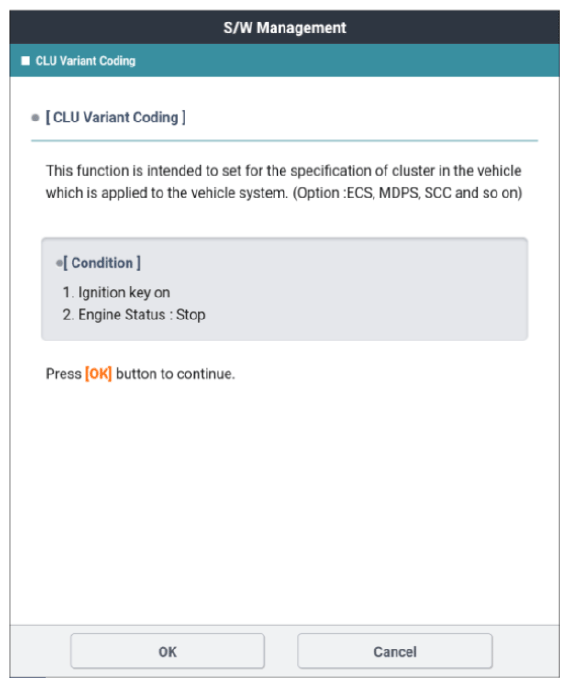

G13458482Courtesy of KIA MOTORS AMERICA, INC.

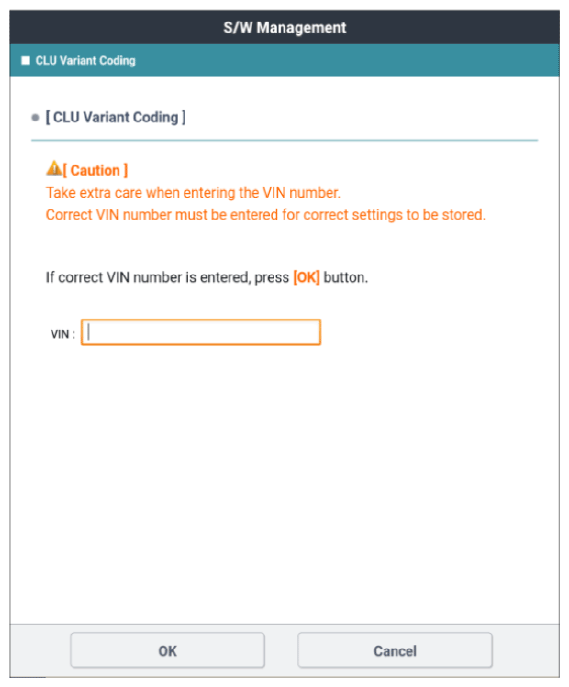

G13458483Courtesy of KIA MOTORS AMERICA, INC.
G13458484Courtesy of KIA MOTORS AMERICA, INC.

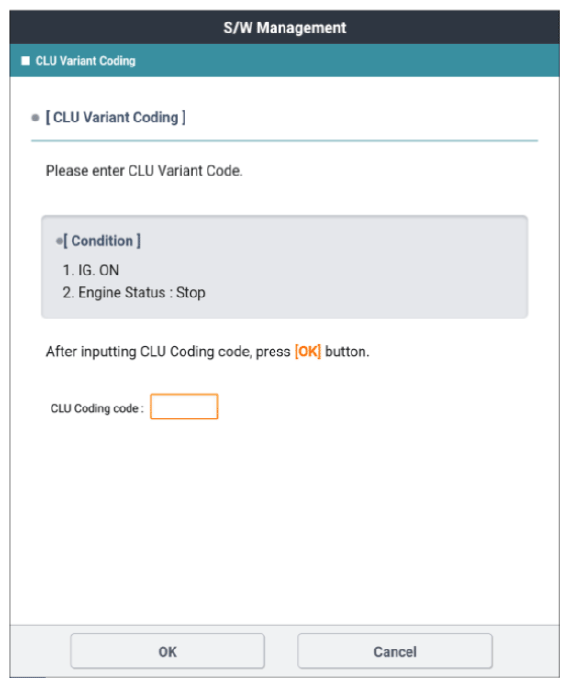

G13458485Courtesy of KIA MOTORS AMERICA, INC.
G13458486Courtesy of KIA MOTORS AMERICA, INC.
