Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.

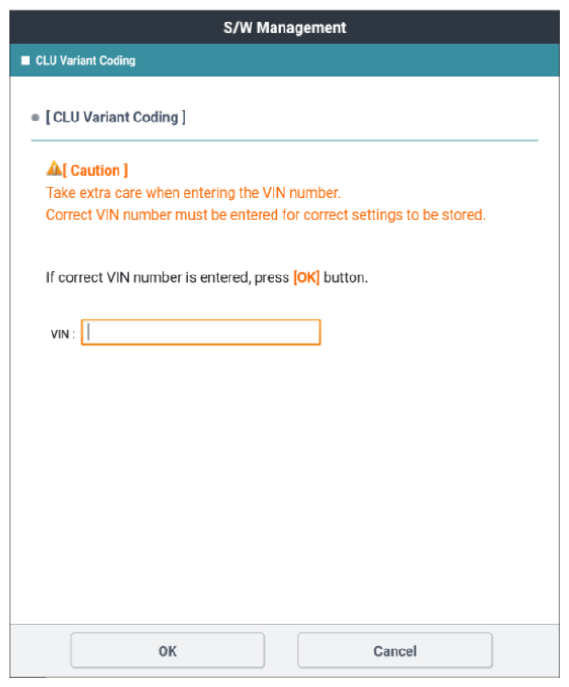

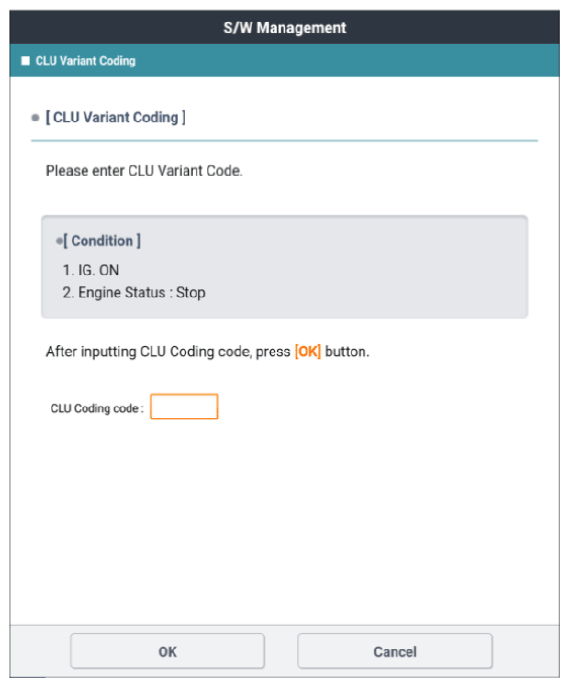

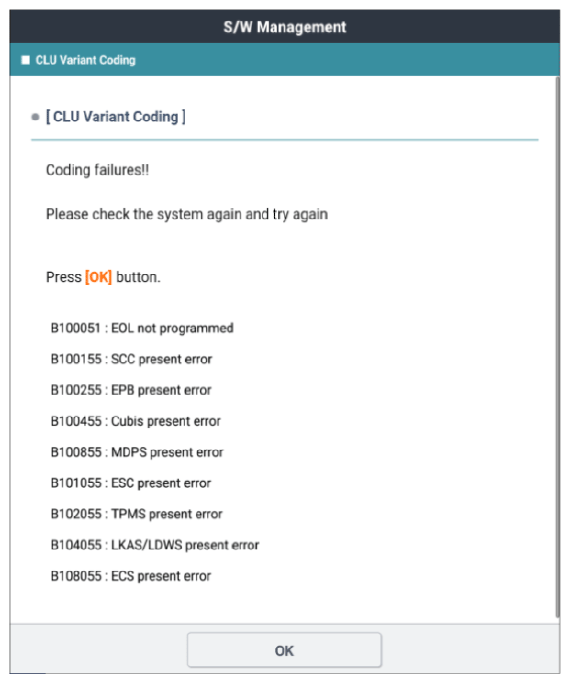

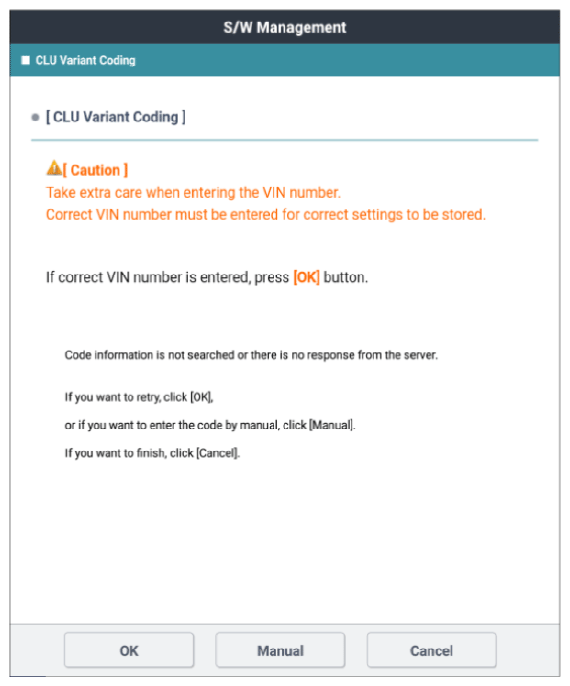

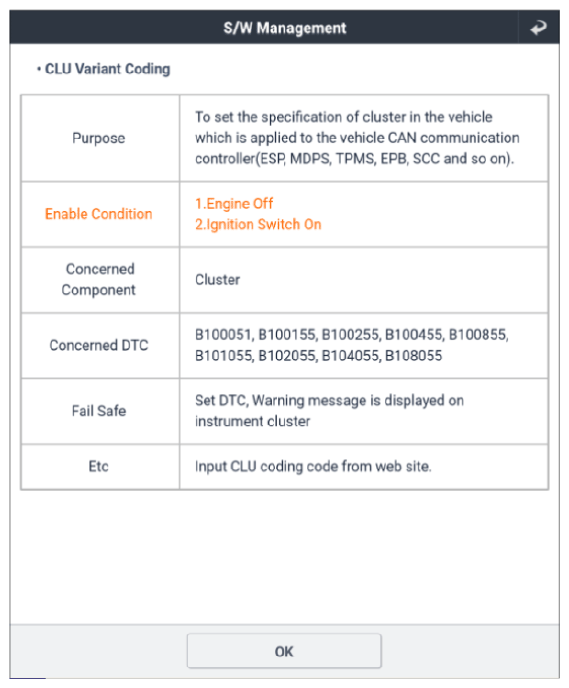

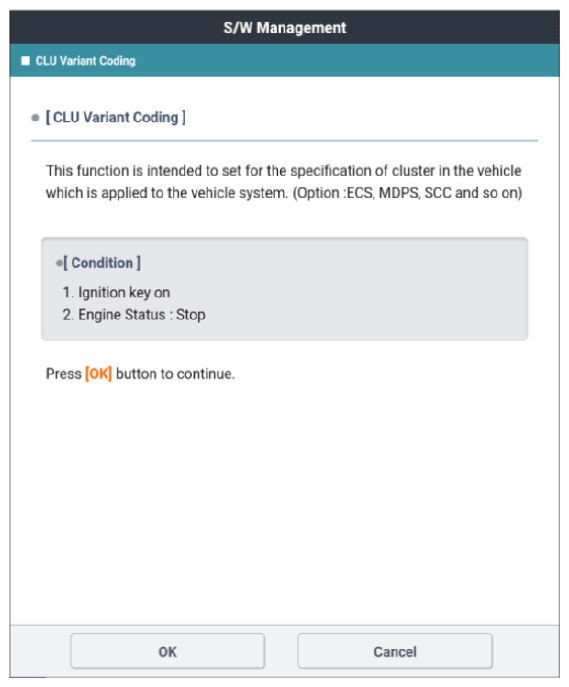

 Fig.1 to 6
G13458471Courtesy of KIA MOTORS AMERICA, INC.
G13458472Courtesy of KIA MOTORS AMERICA, INC.
G13458473Courtesy of KIA MOTORS AMERICA, INC.
G13458474Courtesy of KIA MOTORS AMERICA, INC.
G13458475Courtesy of KIA MOTORS AMERICA, INC.
G13458476Courtesy of KIA MOTORS AMERICA, INC.
