Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig.1 to 6

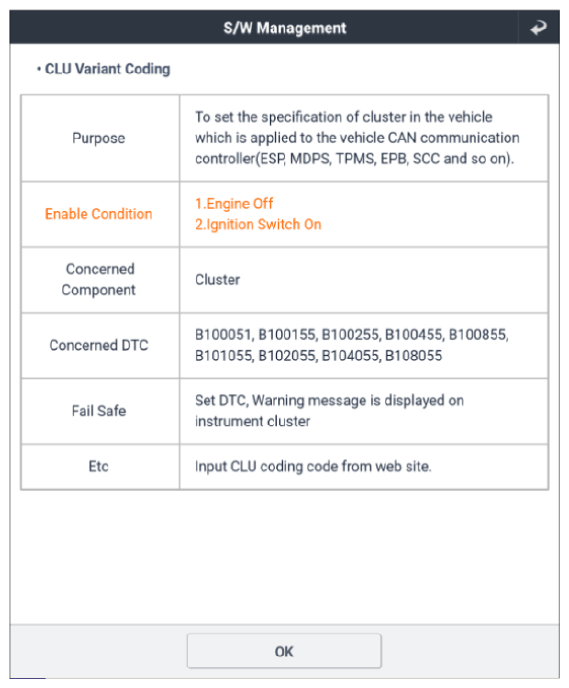

G13458451Courtesy of KIA MOTORS AMERICA, INC.

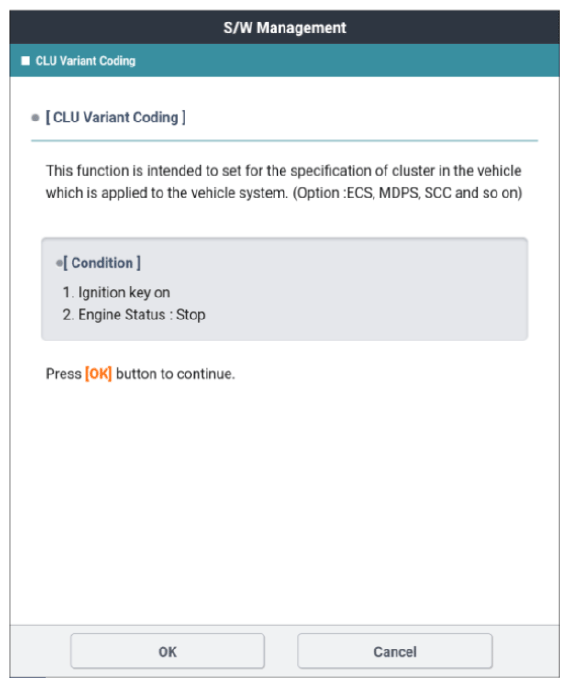

G13458452Courtesy of KIA MOTORS AMERICA, INC.

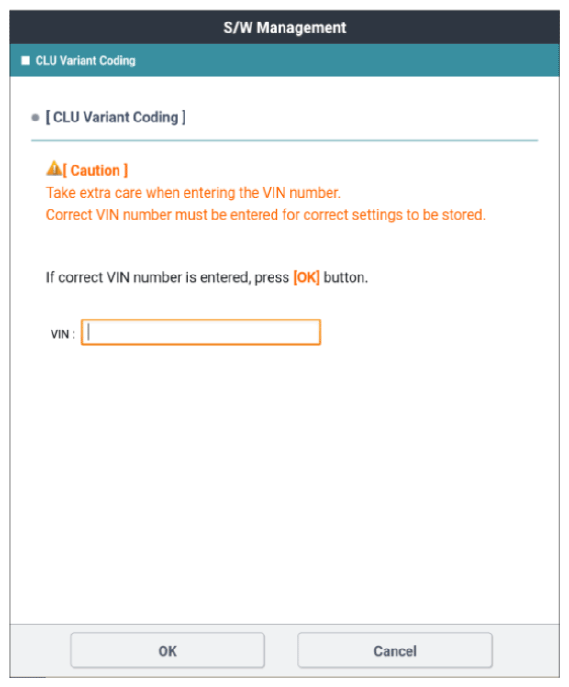

G13458453Courtesy of KIA MOTORS AMERICA, INC.

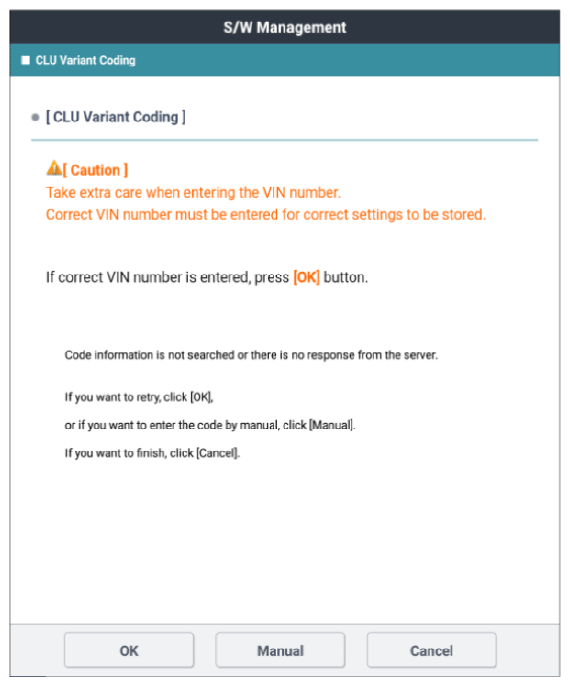

G13458454Courtesy of KIA MOTORS AMERICA, INC.

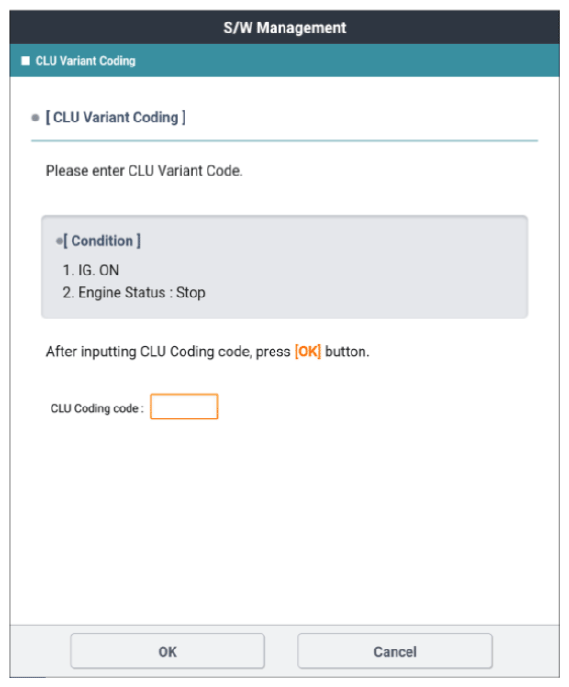

G13458455Courtesy of KIA MOTORS AMERICA, INC.

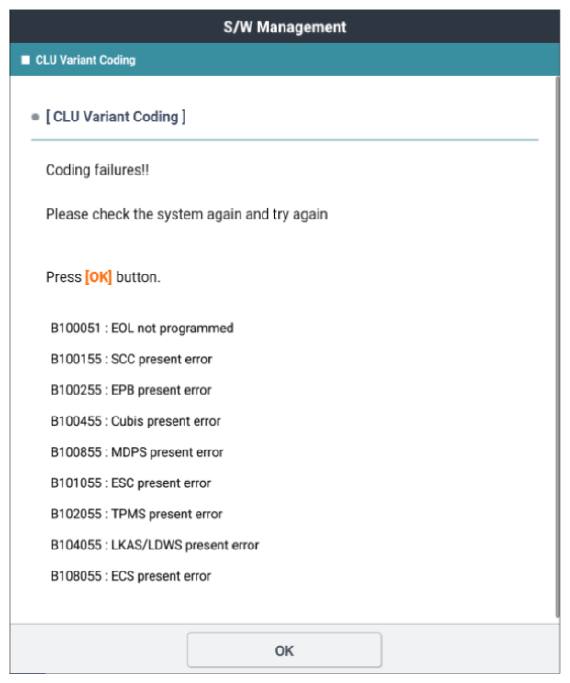

G13458456Courtesy of KIA MOTORS AMERICA, INC.
