Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig.1 to 6

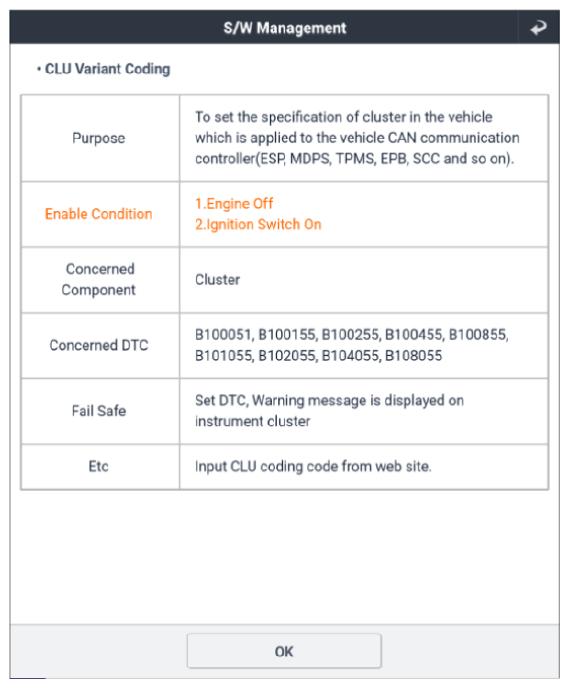

G13458441Courtesy of KIA MOTORS AMERICA, INC.

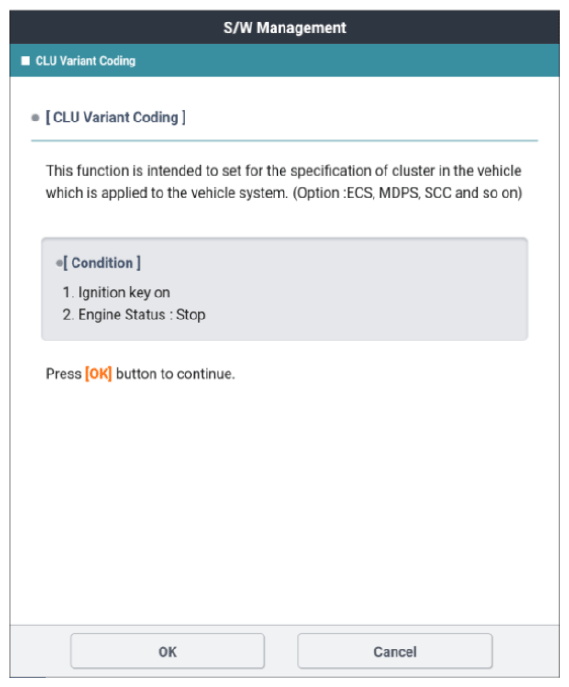

G13458442Courtesy of KIA MOTORS AMERICA, INC.

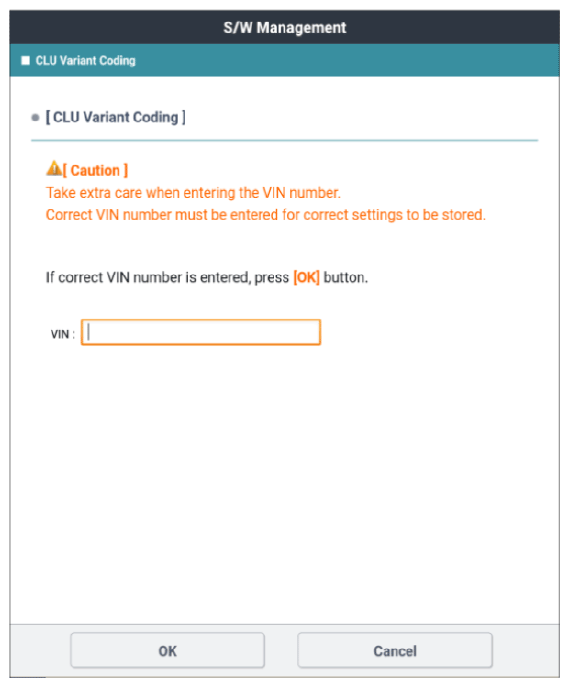

G13458443Courtesy of KIA MOTORS AMERICA, INC.

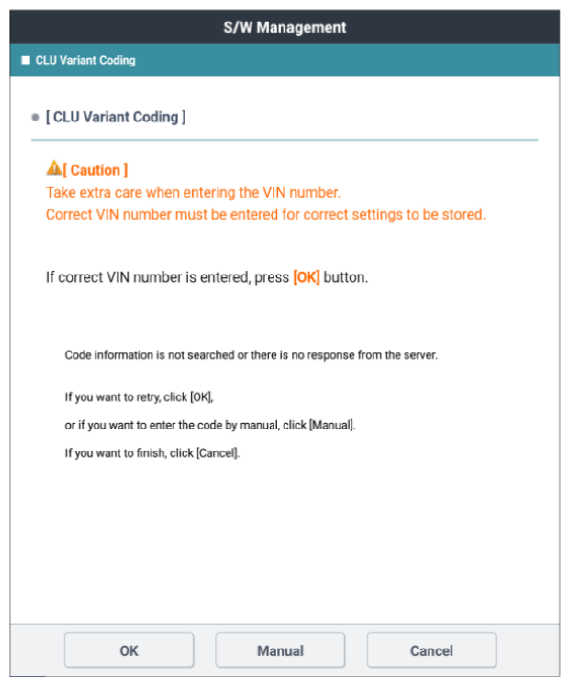

G13458444Courtesy of KIA MOTORS AMERICA, INC.

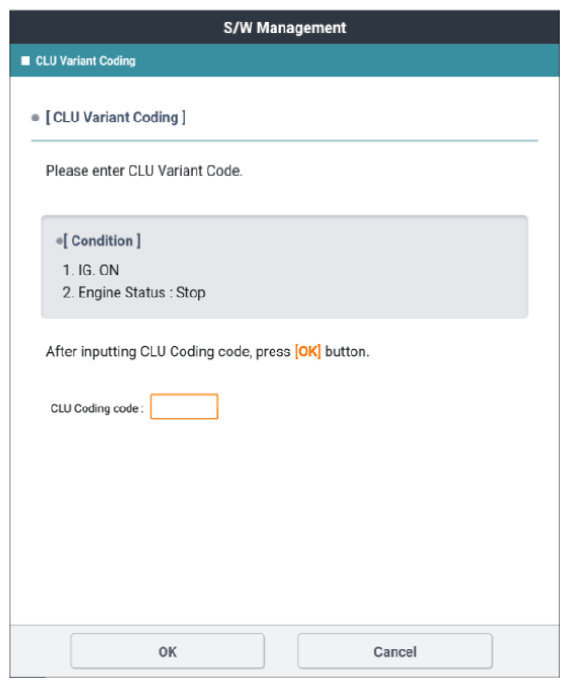

G13458445Courtesy of KIA MOTORS AMERICA, INC.

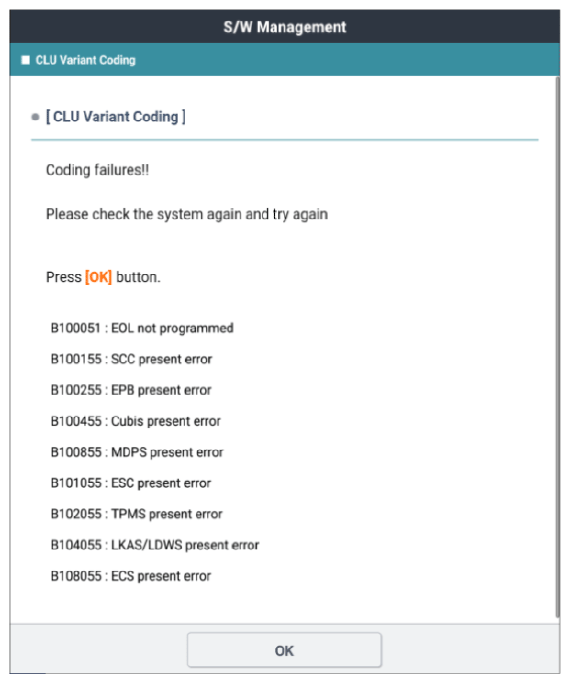

G13458446Courtesy of KIA MOTORS AMERICA, INC.
