Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig.1 to 6

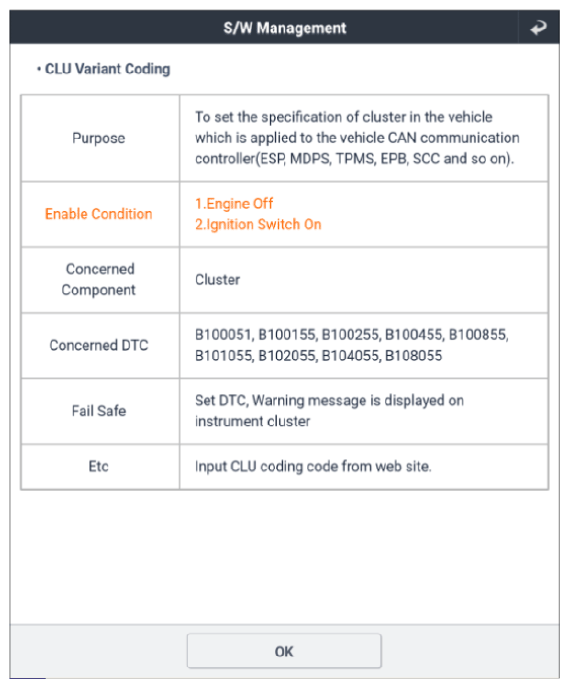

G13458431Courtesy of KIA MOTORS AMERICA, INC.

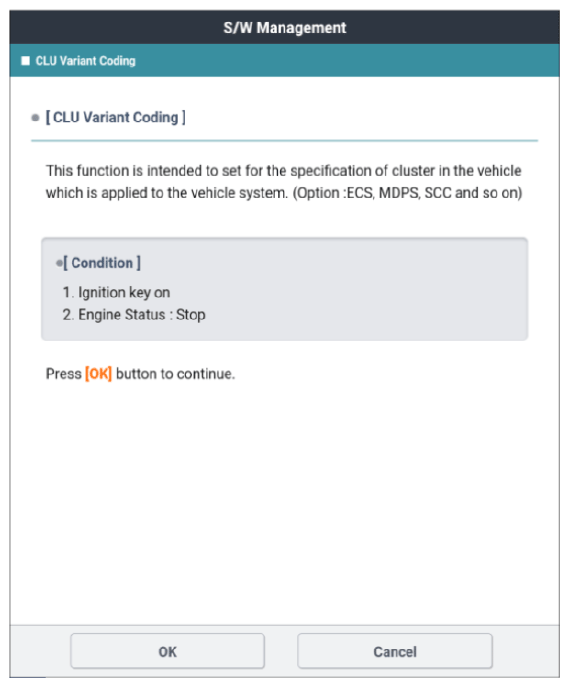

G13458432Courtesy of KIA MOTORS AMERICA, INC.

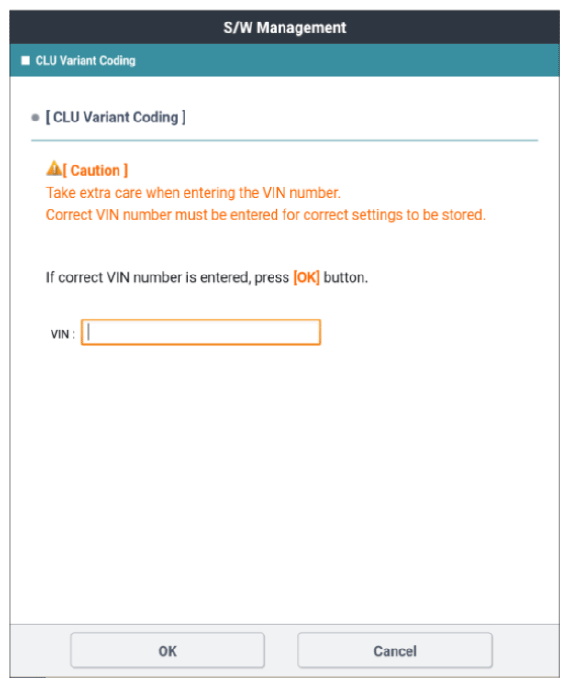

G13458433Courtesy of KIA MOTORS AMERICA, INC.

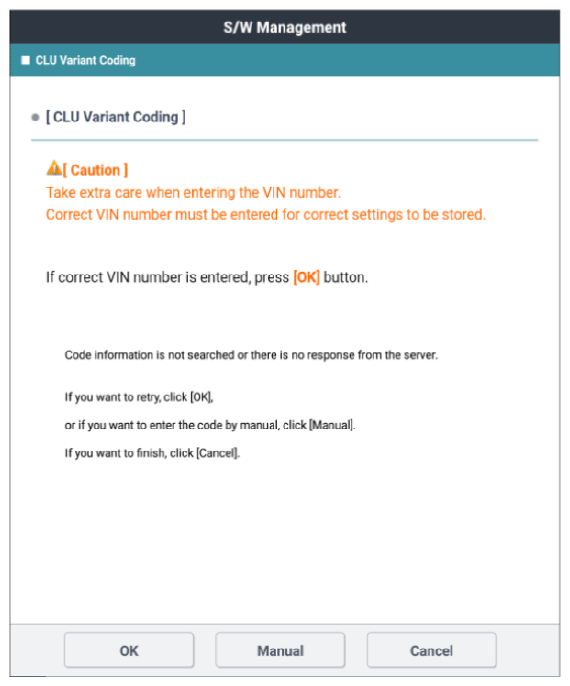

G13458434Courtesy of KIA MOTORS AMERICA, INC.

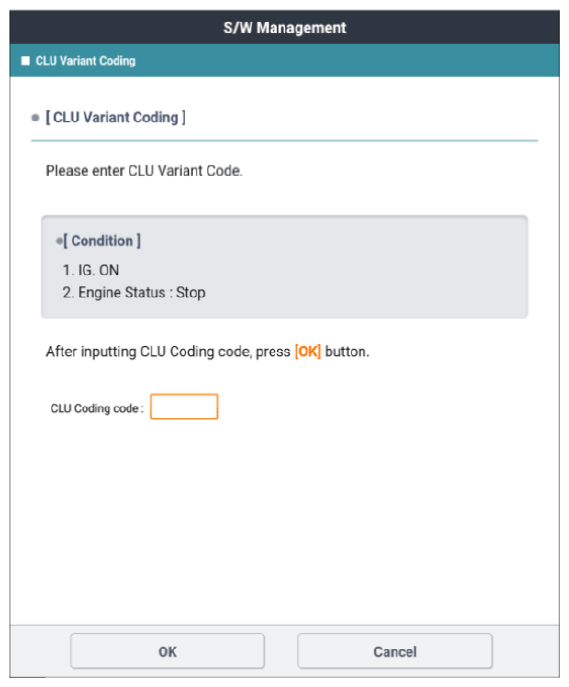

G13458435Courtesy of KIA MOTORS AMERICA, INC.

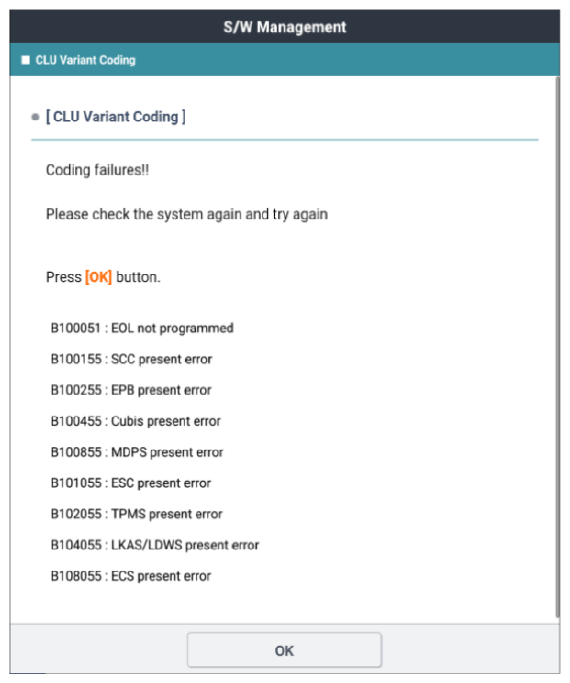

G13458436Courtesy of KIA MOTORS AMERICA, INC.
