Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig.1 to 6

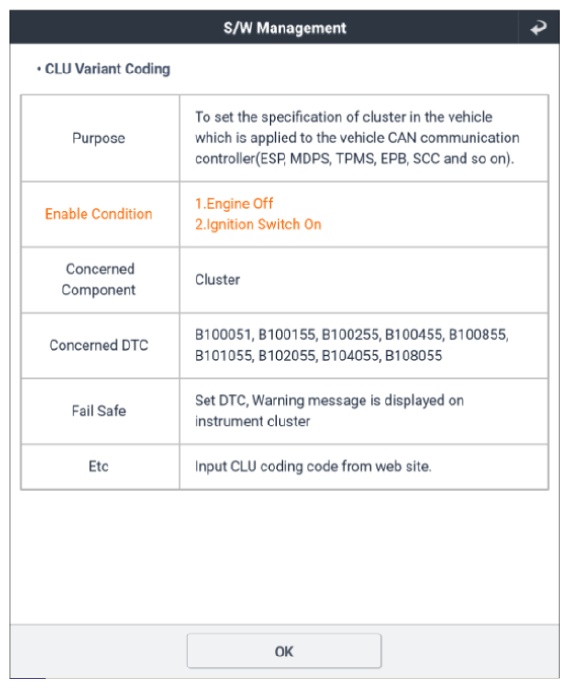

G13458411Courtesy of KIA MOTORS AMERICA, INC.

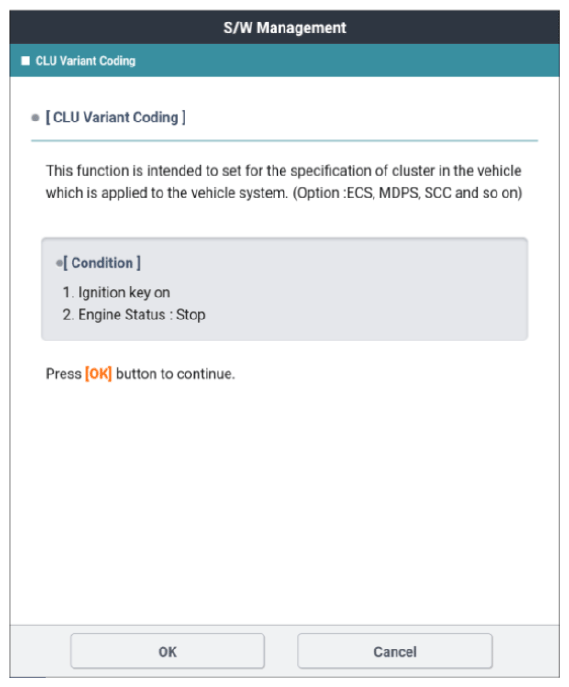

G13458412Courtesy of KIA MOTORS AMERICA, INC.

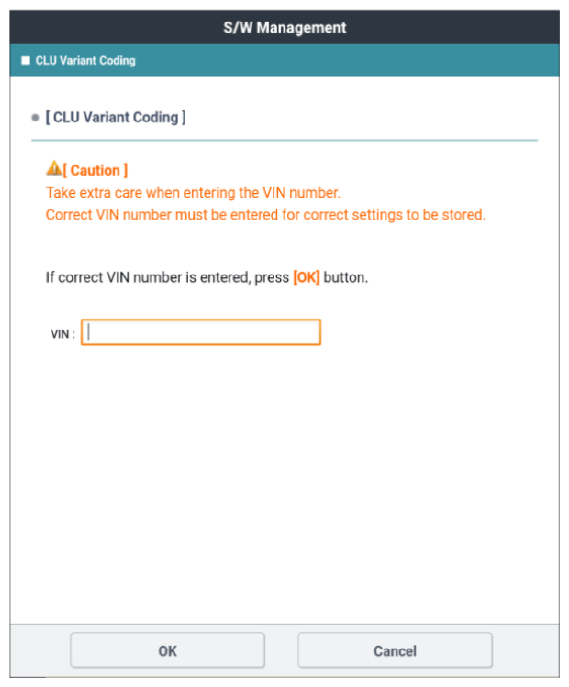

G13458413Courtesy of KIA MOTORS AMERICA, INC.

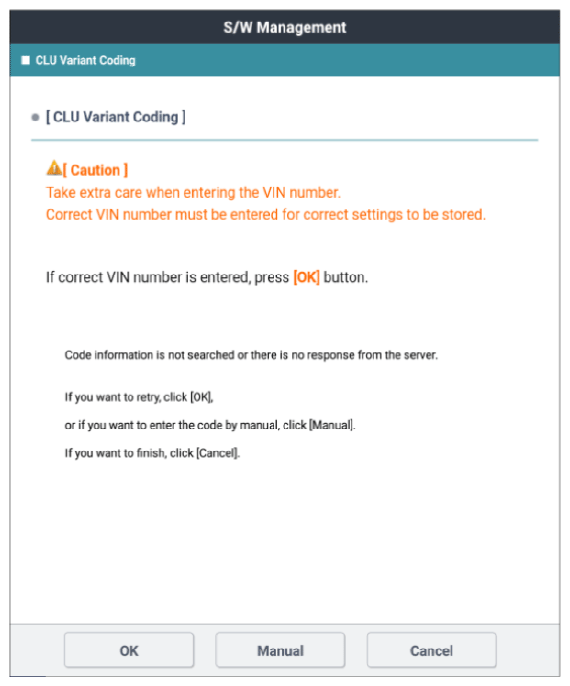

G13458414Courtesy of KIA MOTORS AMERICA, INC.

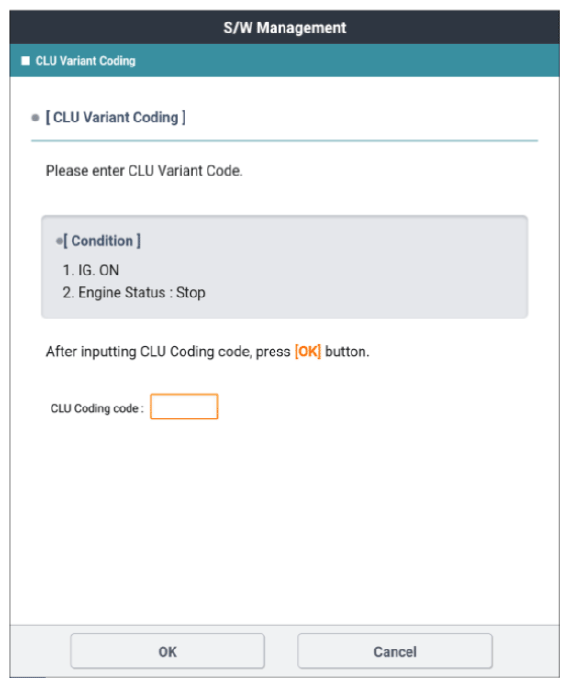

G13458415Courtesy of KIA MOTORS AMERICA, INC.
G13458416Courtesy of KIA MOTORS AMERICA, INC.
