Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the engine cover.

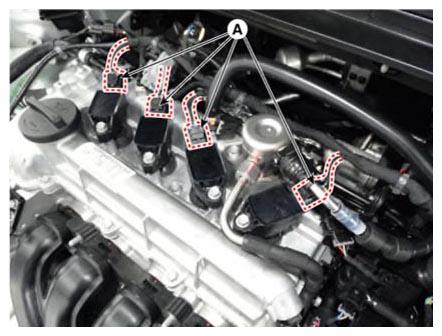

  3. Disconnect the ignition coil connector (A).
    G12998018Courtesy of KIA MOTORS AMERICA, INC.

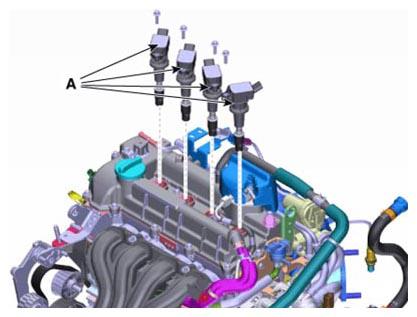

  4. Remove the ignition coil (A) after loosening the mounting bolt.

    Ignition coil mounting bolt  :

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 Ib.ft)

    G12998019Courtesy of KIA MOTORS AMERICA, INC.

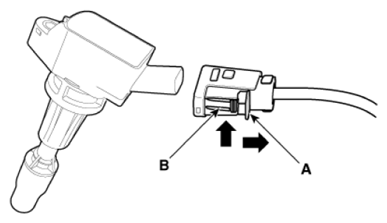

    NOTE: When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
    G12998020Courtesy of KIA MOTORS AMERICA, INC.
