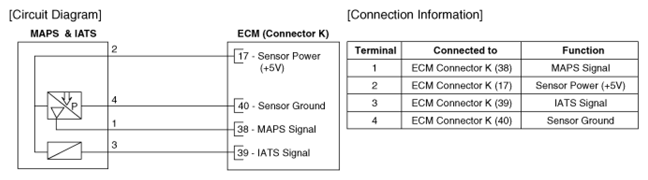

Home >> Kia >> 2019 >> Niro EX >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (HEV) >> Manifold Absolute Pressure Sensor (MAPS) >> Schematic Diagrams >> Circuit Diagram >> Notes
