Removal And Installation: Disassembly

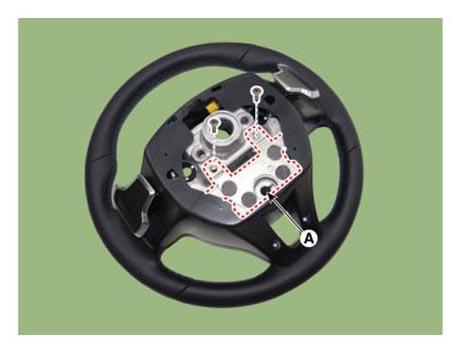

  1. Loosen the screws and then remove the dynamic damper (A).
    G13211335Courtesy of KIA MOTORS AMERICA, INC.
  2. Loosen the paddle shifter mounting screws.

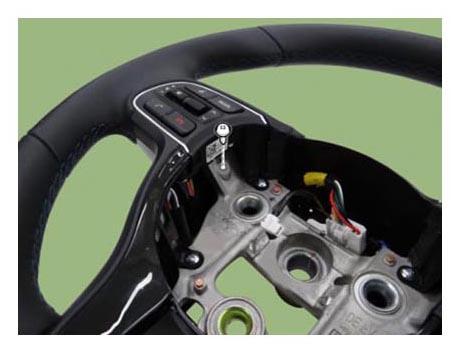

    [LH]

    G13211336Courtesy of KIA MOTORS AMERICA, INC.

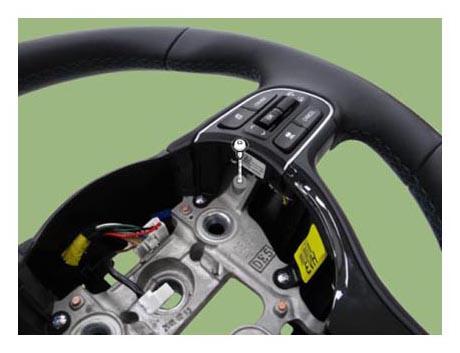

    [RH]

    G13211337Courtesy of KIA MOTORS AMERICA, INC.

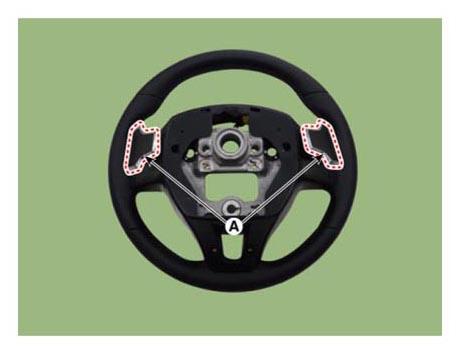

  3. Disconnect the paddle shifters (A).
    G13211338Courtesy of KIA MOTORS AMERICA, INC.

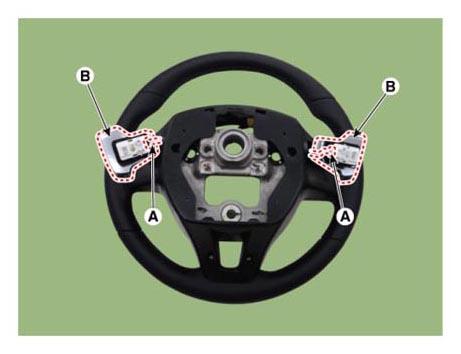

  4. Disconnect the connectors (A) and then remove the paddle shifters (B).
    G13211339Courtesy of KIA MOTORS AMERICA, INC.

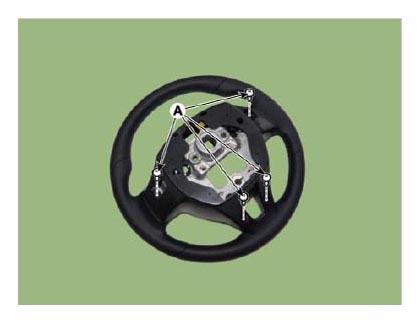

  5. Loosen the screws (A) from the lower cover.
    G13211340Courtesy of KIA MOTORS AMERICA, INC.

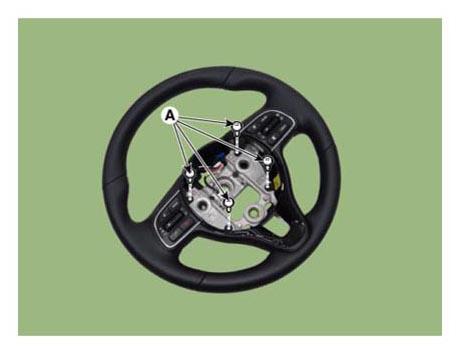

  6. Loosen the screws (A) from the remote control switch.
    G13211341Courtesy of KIA MOTORS AMERICA, INC.

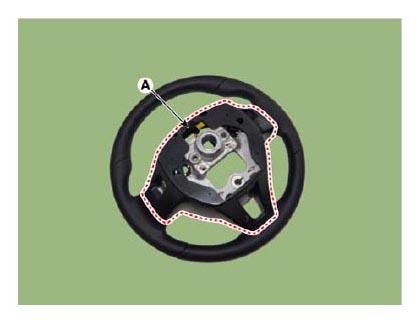

  7. Remove the lower cover (A).
    G13211342Courtesy of KIA MOTORS AMERICA, INC.

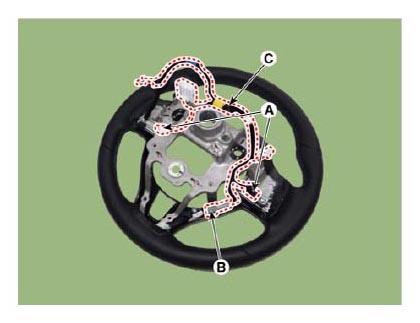

  8. Disconnect the remote control switch connectors (A), heated pad connector (B) and then remove the wiring (C).
    G13211343Courtesy of KIA MOTORS AMERICA, INC.

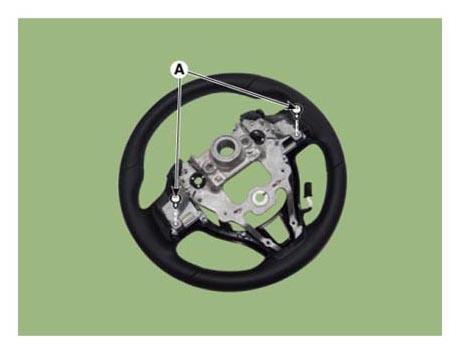

  9. Loosen the screws (A) and then remove the remote control switch assembly (B).
    G13211344Courtesy of KIA MOTORS AMERICA, INC.

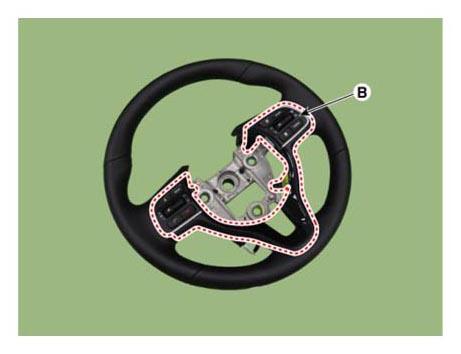

    G13211345Courtesy of KIA MOTORS AMERICA, INC.

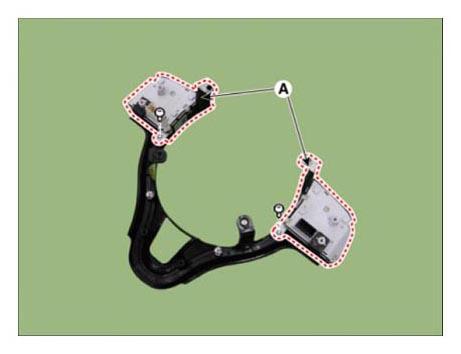

  10. Loosen the screws and then remove the remote control switch (A).
    G13211346Courtesy of KIA MOTORS AMERICA, INC.
  11. Assemble in the reverse order of disassembly.
