Special Service Tools

Tool Name/Number	Illustration	Description

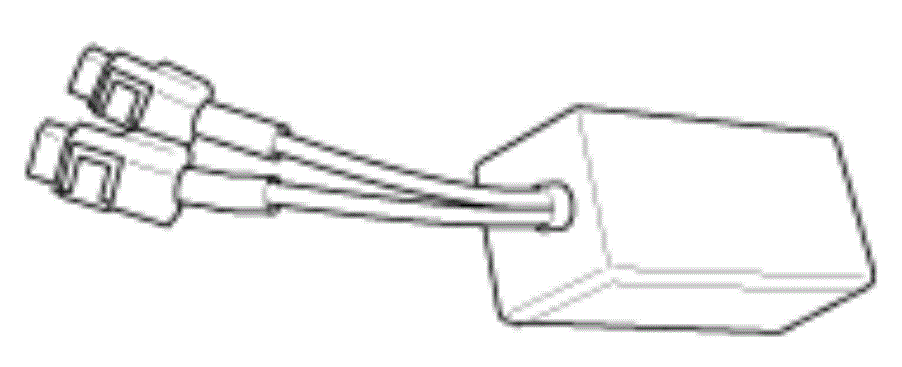

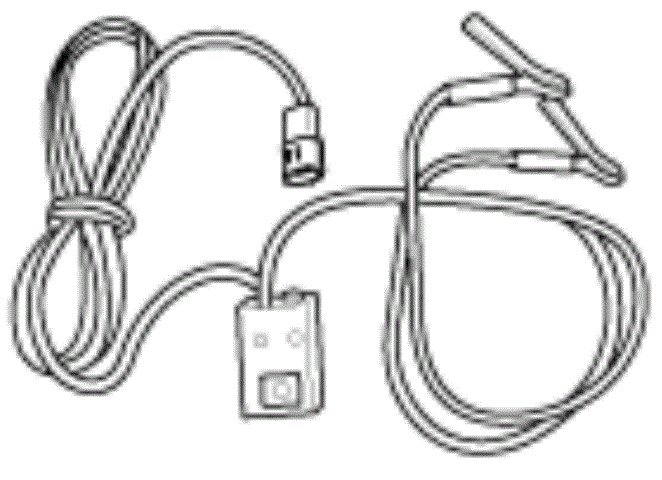

Deployment tool 0957A-34100A	Courtesy of KIA MOTORS AMERICA, INC.	Used for deploying airbag

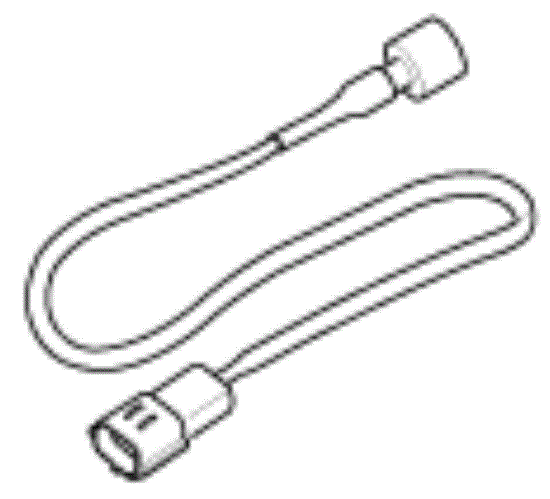

Deployment adapter 0K57A-3U100A	Courtesy of KIA MOTORS AMERICA, INC.	Used with the deployment tool (0957A-34100A) when deploying DAB, PAB, CAB, BPT, EFD
Deployment adapter 0957A-2W100	Courtesy of KIA MOTORS AMERICA, INC.	Used with the deployment tool (0957A-34100A) when deploying SAB
Dummy 0957A-38200	Courtesy of KIA MOTORS AMERICA, INC.
Dummy adapter 0957A-2G000	Courtesy of KIA MOTORS AMERICA, INC.

DAB: Driver Airbag

PAB: Passenger Airbag

SAB: Side Airbag

CAB: Curtain Airbag

BPT: Seat Belt Pretensioner

EFD: Emergency Fastening Devise
