Limp Home Mode

Courtesy of KIA MOTORS AMERICA, INC.

• In case of no brake input signal (AT specification), the ACC will cycle to "START" by pressing SSB for more than 10 seconds.
• In case of communication problems between EMS and CAN, the "START" position will switch to "ENGINE RUN" based on RPM input.

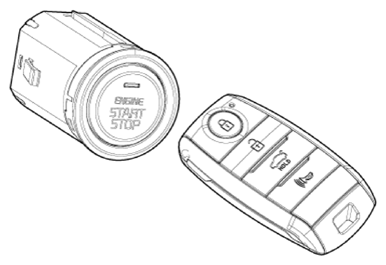

• In case that one out of two SSB input wires are disconnected.

The electric power cycling is available when SSB is pressed twice within 10 seconds (SSB LIMP HOME PRESS)

The buzzer rings when the button is pressed for the first time.

The electric power cycling is available and buzzer stops when the button is pressed twice within 10 seconds.
