Repair Procedures: Installation

Install in the reverse order of removal.

NOTE:

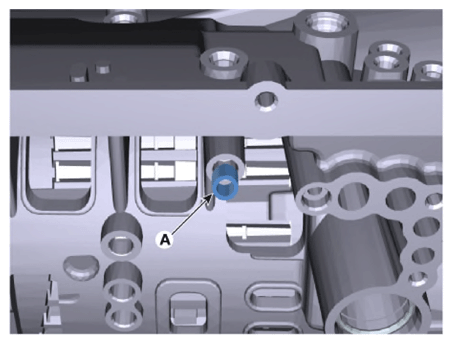

Check if the pipe (A) is inserted on the marked area before mounting the valve body assembly

Courtesy of KIA MOTORS AMERICA, INC.

Perform the procedures below after installing.

Refill the automatic transmission with fluid.
(Refer to Hydraulic System - "FLUID ")
Clear the diagnostic trouble codes (DTC) using the KDS. Disconnecting the battery negative terminal will not clear the DTCs. Clear DTCs using the KDS at all times.

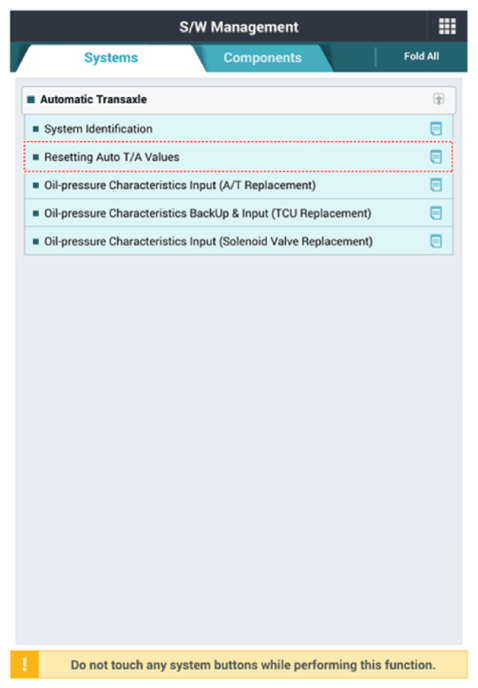

Reset the automatic transmission adaptive values using the KDS.

Courtesy of KIA MOTORS AMERICA, INC.

Perform the TCM adaptive values learning procedure.
(Refer to Automatic Transmission Control System - "REPAIR PROCEDURES ")
After installing, check for leakage of fluid from hose connection during engine start.
