Repair Procedures: Replacement

  1. Remove the front strut assembly.

    (Refer to Suspension System - "FRONT STRUT ASSEMBLY ")

  2. Remove the front upper arm (A) from the module bracket assembly.

    Tightening torque:

    98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)

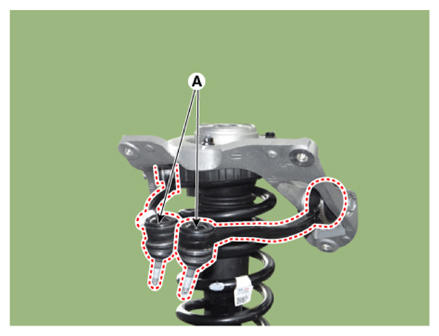

    G13144332Courtesy of KIA MOTORS AMERICA, INC.
  3. Install in the reverse order of removal.
NOTE: When installing, be careful to positioning angles of front upper arm.
